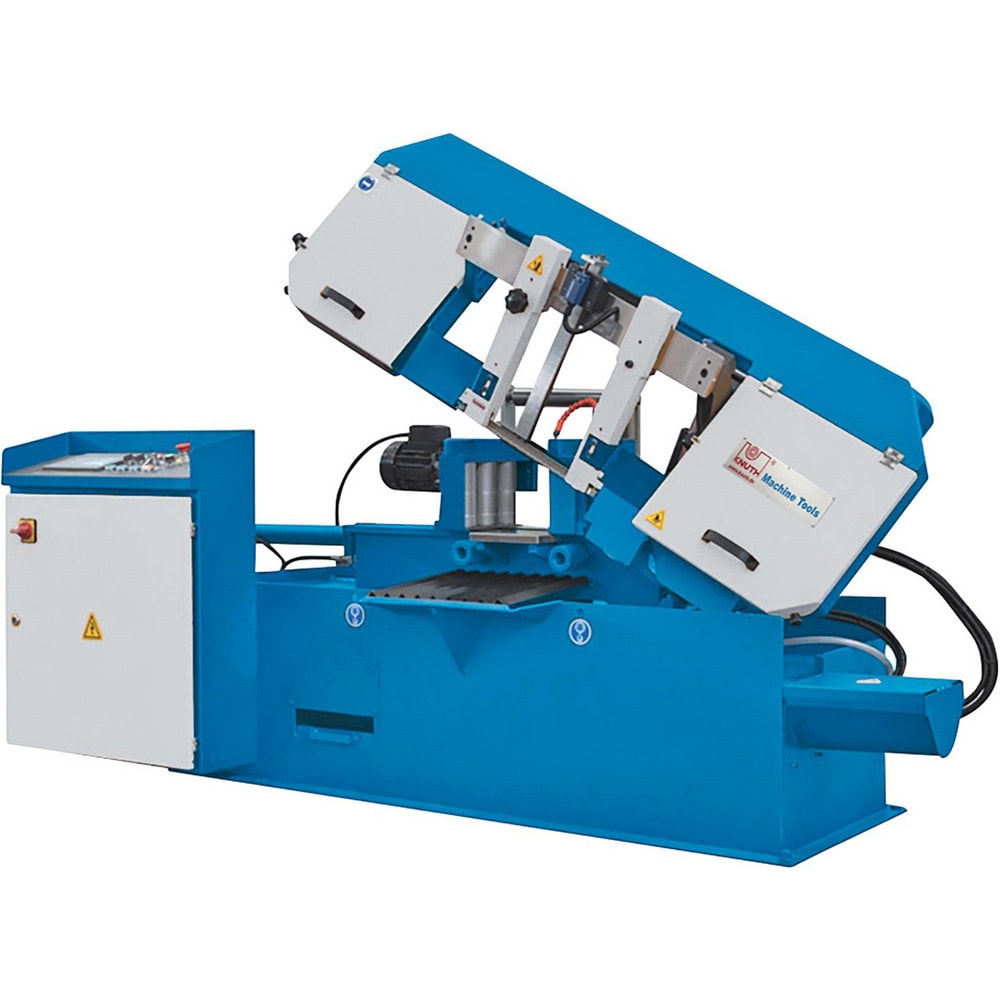

Horizontal Bandsaws; Machine Style: Automatic; Drive Type: Geared Head; Angle of Rotation: 90; Rectangular Cutting Capacity - Horizontal At 90 Degrees: 13x12 inches; Maximum Capacity (Rectangular) (Inch): 13x12; Maximum Capacity (Rounds) (Inch): 13; Round
Item #: 60066180
Brand: Knuth
Model #: 152759
Product Specifications
| Machine Style | Automatic |
| Drive Type | Geared Head |
| Angle of Rotation | 90 |
| Rectangular Cutting Capacity - Horizontal At 90 Degrees | 13x12 inches |
| Maximum Capacity (Rectangular) (Inch) | 13x12 |
| Maximum Capacity (Rounds) (Inch) | 13 |
| Round Cutting Capacity - Horizontal at 90 Degrees | 13 inches |
| Minimum Blade Speed | 66 |
| Maximum Blade Speed | 330 |
| Phase | Three |
| Horsepower | 2.0000 |
| Voltage | 220V |
| Amperage | 25.0000 |
| Maximum Miter Cut Angle | 0 |
| Maximum Cutting Diameter | 13 |
| Blade Length (mm) | 3659.8900 |
| Blade Length (Feet) | 12.00 |
| Blade Length (Inch) | 144.09 |
| Blade Length (Decimal Inch) | 144.0900 |
| Blade Width | 1.06 |
| Blade Width (Decimal Inch) | 1.0000 |
| Blade Thickness (Decimal Inch) | 0.0420 |
| Base Depth (Inch) | 34 |
| Base Depth (Decimal Inch) | 34.0000 |
| Blade Guide Type | Carbide |
| Blade Brush Included | Yes |
| Number Of Speeds | Infinitely Variable |
| Frequency | 60 |
| Bed Height | 26 |
| Base Width (Inch) | 75.0000 |
| Coolant System | Yes |
| Features | Infinitely Variable Cutting Speeds; Bundling Vise; Hydraulic Workpiece Clamping; Touchscreen For Automatic Feed |
| Special Item Information | Saw Blade Feed Via Micro-Adjustable Hydraulic Valve; The Automatic Workpiece Feed Is Very Precise And Driven Via Vise-Integrated Motorized Rollers; The Saw Blade Tension Can Be Precisely Adjusted Via A Pressure Gauge That Is Integrated In The Clamping Mechanism; Unnecessary Down-Times Are Reduced By An Optically Controlled Change-Over From Rapid Feed To Work Feed |
| Warranty | 1 Year Parts |
| UNSPSC Code | 23231100 |
| Machine Style | Automatic |
| Drive Type | Geared Head |
| Angle of Rotation | 90 |
| Rectangular Cutting Capacity - Horizontal At 90 Degrees | 13x12 inches |
| Maximum Capacity (Rectangular) (Inch) | 13x12 |
| Maximum Capacity (Rounds) (Inch) | 13 |
| Round Cutting Capacity - Horizontal at 90 Degrees | 13 inches |
| Minimum Blade Speed | 66 |
| Maximum Blade Speed | 330 |
| Phase | Three |
| Horsepower | 2.0000 |
| Voltage | 220V |
| Amperage | 25.0000 |
| Maximum Miter Cut Angle | 0 |
| Maximum Cutting Diameter | 13 |
| Blade Length (mm) | 3659.8900 |
| Blade Length (Feet) | 12.00 |
| Blade Length (Inch) | 144.09 |
| Blade Length (Decimal Inch) | 144.0900 |
| Blade Width | 1.06 |
| Blade Width (Decimal Inch) | 1.0000 |
| Blade Thickness (Decimal Inch) | 0.0420 |
| Base Depth (Inch) | 34 |
| Base Depth (Decimal Inch) | 34.0000 |
| Blade Guide Type | Carbide |
| Blade Brush Included | Yes |
| Number Of Speeds | Infinitely Variable |
| Frequency | 60 |
| Bed Height | 26 |
| Base Width (Inch) | 75.0000 |
| Coolant System | Yes |
| Features | Infinitely Variable Cutting Speeds; Bundling Vise; Hydraulic Workpiece Clamping; Touchscreen For Automatic Feed |
| Special Item Information | Saw Blade Feed Via Micro-Adjustable Hydraulic Valve; The Automatic Workpiece Feed Is Very Precise And Driven Via Vise-Integrated Motorized Rollers; The Saw Blade Tension Can Be Precisely Adjusted Via A Pressure Gauge That Is Integrated In The Clamping Mechanism; Unnecessary Down-Times Are Reduced By An Optically Controlled Change-Over From Rapid Feed To Work Feed |
| Warranty | 1 Year Parts |
| UNSPSC Code | 23231100 |
| MSC Part # | 60066180 |
| Mfr Part # | 152759 |
| Country of Origin Country of Origin is subject to change | Turkey |
