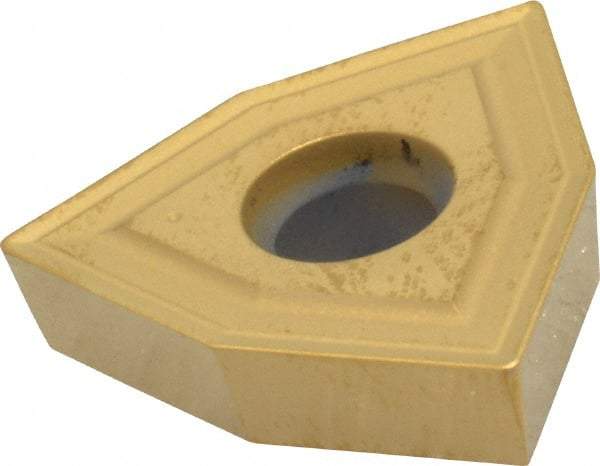

Kennametal - DFT110506 HD Grade KC720 Carbide Indexable Drill Insert - TiN Finish, Trigon, 17.6mm Inscribed Circle
Item #: 02237873
Brand: Kennametal
Model #: 1623337
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | DFT |
| Insert Size | 110506 |
| Material | Carbide |
| Material Grade | C1/C5 |
| Manufacturer's Grade | KC720 |
| Inscribed Circle (mm) | 17.60 |
| Inscribed Circle (Decimal Inch) | 0.6929 |
| Thickness (mm) | 4.93 |
| Thickness (Decimal Inch) | 0.1941 |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Shape | Trigon |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4579 |
| Hole Diameter (mm) | 5.85 |
| Hole Diameter (Decimal Inch) | 0.2303 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | TiN |
| Coating Process | PVD |
| Chipbreaker | HD |
