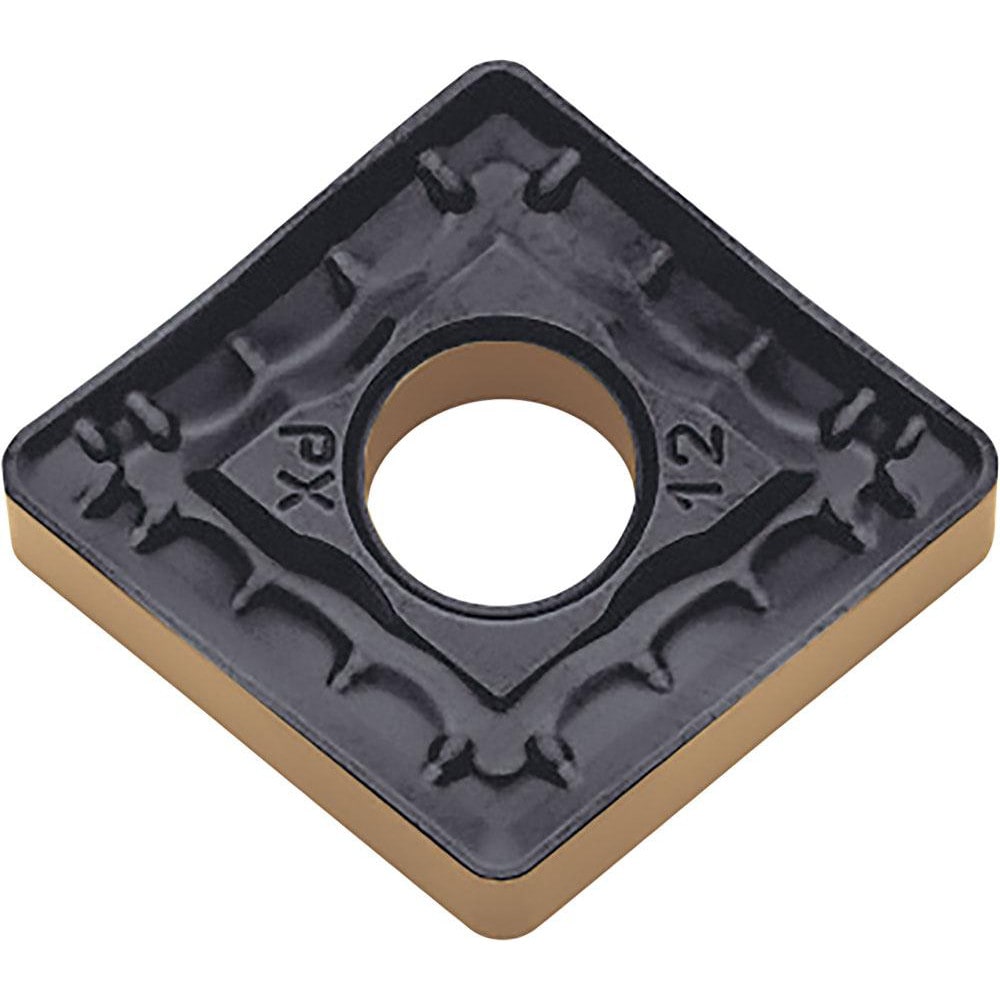

Turning Insert: CNMM542PX CA115P, Carbide
Item #: 04488854
Brand: Kyocera
Model #: TML00111
Product Specifications
| ANSI Insert Code | CNMM542 |
| ISO Insert Code | CNMM160608 |
| Relief Angle | 0 |
| Insert Style | CNMM |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | CA115P |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.35 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | CNMM160608PX |
| Manufacturers Catalog Number | CNMM542PXCA115P |
| Chip Breaker | PX |
| Cutting Edge Style | Single Sided; High Feed Rate |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
| ANSI Size Code | 542 |
| ISO Size Code | 160608 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 542 |
