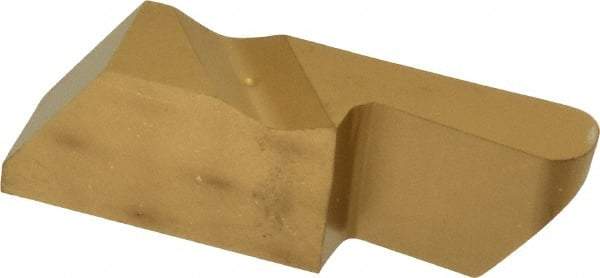

Kennametal - 4094NRD Grade KC850, 4.78mm Cutting Width Carbide Grooving Insert - 12.7mm Max Depth of Cut, Right Hand, 2.39mm Corner Radius, TiC/TiCN/TiN Finish
Item #: 01981752
Brand: Kennametal
Model #: 1114963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NRD |
| Insert Size | 4094 |
| Material | Carbide |
| Cutting Width (mm) | 4.78 |
| Cutting Width (Decimal Inch) | 0.1882 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | KC850 |
| Coating | TiC/TiCN/TiN |
| Insert Hand | Right Hand |
| Insert Seat Size | 4 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 2.39 |
| Corner Radius (Decimal Inch) | 0.0941 |
| Coating Process | CVD |
| Series | Top Notch |
| Rake | Neutral |
| Included Angle | 55 |
