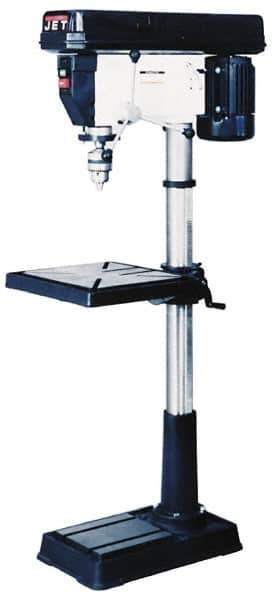

Jet - 16-1/2" Swing, Step Pulley Drill Press - 16 Speed, 3/4 hp, Single Phase
Item #: 01741479
Brand: Jet
Model #: 354169
Exact Tooling IR#: 04
Features and Benefits
Floor drill presses, also known as standing drill presses, offer more power options than bench drill presses. They are most suited for heavy-duty operations.
Drill presses are used for several countersinking, counterboring, drilling, reaming and tapping operations.They are used for heavy-duty metalworking operations.
Step pulleys are driven by a belt system that is manually changed to achieve a range of fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Stand Type | Floor |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 16-1/2 |
| Spindle Speed Control | Step Pulley |
| Phase | 1 |
| Spindle Taper Size | 2MT |
| Spindle Travel Length (Inch) | 4-3/8 |
| Horsepower (HP) | 0.75 |
| Voltage | 115/230 |
| Minimum Spindle Speed (RPM) | 200 |
| Maximum Spindle Speed (RPM) | 3630 |
| Drilling Capacity in Steel (Inch) | 5/8 |
| Maximum Chuck Capacity (Inch) | 5/8 |
| Radial Head | NonRadial Head |
| Number of Spindle Speeds | 16 |
| Spindle to Table Distance (Inch) | 29-1/8 |
| Spindle to Column Distance (Inch) | 8-1/4 |
| Table Width/Diameter (Inch) | 13-3/4 |
| Table Load Capacity (Lb.) | 19.63 |
| Table Tilt (Degrees) | 45.00 |
| Base Length (Inch) | 12-1/2 |
| Base Width (Inch) | 19-5/8 |
| Column Diameter (Inch) | 3-1/8 |
| Overall Length (Decimal Inch) | 12.7500 |
| Overall Length (Inch) | 12-3/4 |
| Overall Height (Inch) | 54-1/2 |
| Overall Height (Decimal Inch) | 54.5000 |
| Overall Depth (Inch) | 23-1/2 |
| Overall Depth (Decimal Inch) | 23.5000 |
