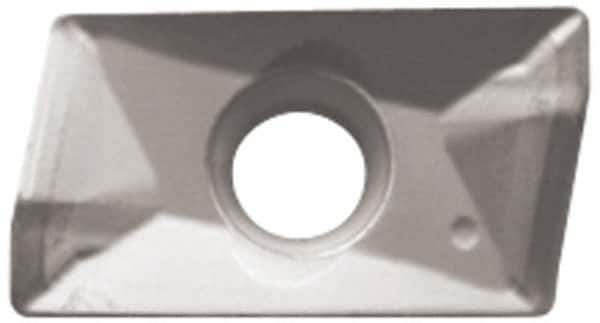

Tungaloy - ASMT170508 MS Grade AH140 Carbide Milling Insert - 0.22" Thick, 0.031" Corner Radius
Item #: 01682053
Brand: Tungaloy
Model #: 6818308
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ASMT |
| Insert Size | 170508 |
| Material | Carbide |
| Manufacturer's Grade | AH140 |
| Width (Decimal Inch) | 0.3860 |
| Length (Decimal Inch) | 0.6650 |
| Thickness (Decimal Inch) | 0.2200 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | MS |
