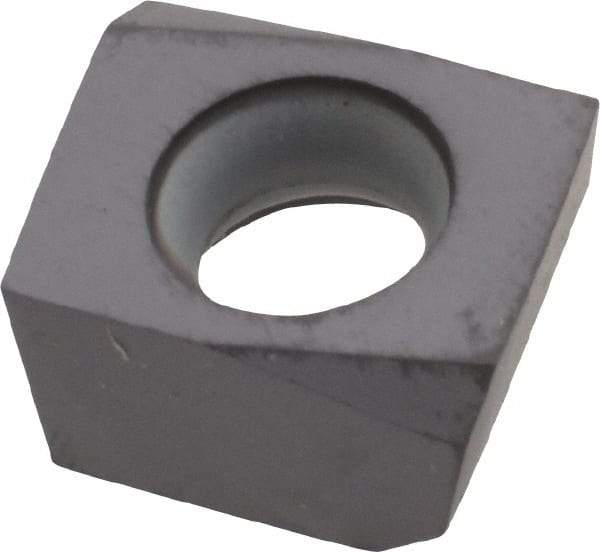

Kennametal - MDHX1004 GD Grade KC520M Carbide Milling Insert - TiAlN Finish, 0.187" Thick, 1/2" Inscribed Circle
Item #: 01654102
Brand: Kennametal
Model #: 1874250
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MDHX |
| Insert Size | 1004 |
| Material | Carbide |
| Material Grade | C1/C2 |
| Manufacturer's Grade | KC520M |
| Coating | TiAlN |
| Length (Decimal Inch) | 0.4252 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1870 |
| Hole Diameter (mm) | 5.45 |
| Hole Diameter (Decimal Inch) | 0.2146 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Diamond |
| Insert Hand | Right Hand |
| Chipbreaker | GD |
| ISO Number | MDHX1004ZDFRGD4W |
