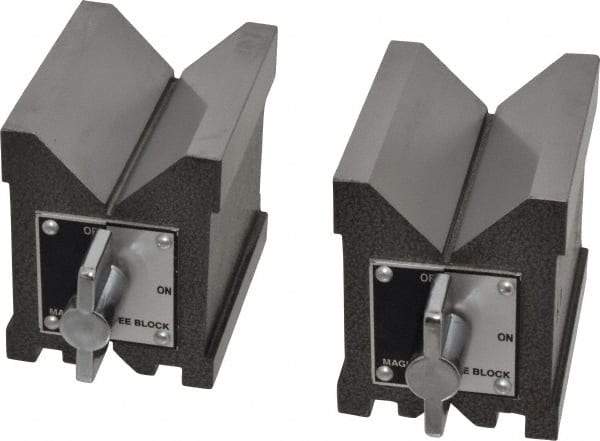

Value Collection - 4.76 to 2-3/4" Capacity, 90° Angle, Steel V-Block - 4" Long x 3" Wide x 3-3/4" High, Sold as Matched Pair
Item #: 01292374
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Matched Pair |
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Overall Width (mm) | 76.20 |
| Overall Width (Inch) | 3 |
| Overall Height (mm) | 95.25 |
| Overall Height (Inch) | 3-3/4 |
| V Angle | 90.00 |
| Minimum Capacity of V (mm) | 4.76 |
| Minimum Capacity of V (Inch) | 3/16 |
| Maximum Capacity of V (mm) | 69.85 |
| Maximum Capacity of V (Inch) | 2-3/4 |
| Material | Steel |
| Magnetic | Yes |
| Includes | Magnetic Chuck |
