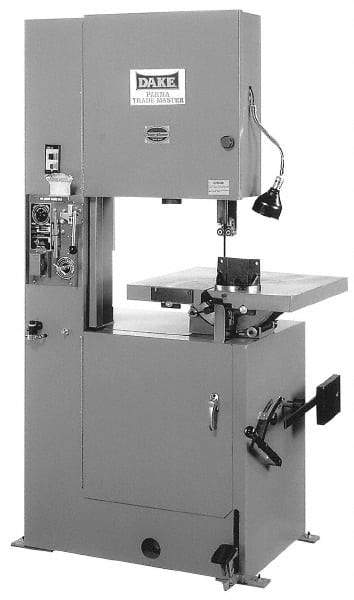

Dake - 19-1/2 Inch Throat Capacity, Variable Speed Pulley Vertical Bandsaw - 50 to 500 SFPM, 1-1/2 HP, Three Phase
Item #: 01244490
Brand: Dake
Model #: 988071
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Drive Type | Variable Speed Pulley |
| Throat Capacity (Inch) | 19-1/2 |
| Height Capacity (Inch) | 12 |
| Phase | 3 |
| Blade Width (Inch) | 1/4 to 1 |
| Blade Speeds (SFPM) | 50 to 500 |
| Blade Length (Inch) | 150 |
| Blade Wheel Diameter (Inch) | 20 |
| Table Length (Inch) | 24 |
| Table Width (Inch) | 24 |
| Floor to Table Height (Inch) | 41 |
| Table Tilt Right (Degrees) | 45.00 |
| Horsepower (HP) | 1.50 |
| Voltage | 220 |
| Base Width (Inch) | 32 |
| Base Depth (Inch) | 40 |
| Overall Height (Inch) | 80 |
