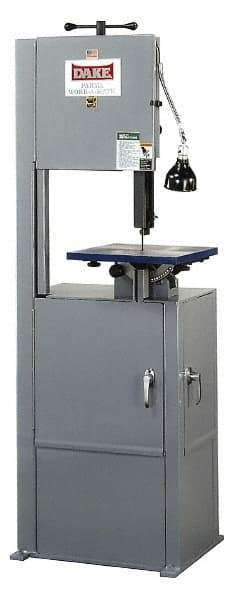

Dake - 14 Inch Throat Capacity, Step Pulley Vertical Bandsaw - 70, 140, 270, 540 SFPM, 1 HP, Three Phase
Item #: 01244474
Brand: Dake
Model #: 988051
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Drive Type | Step Pulley |
| Throat Capacity (Inch) | 14 |
| Height Capacity (Inch) | 10 |
| Phase | 3 |
| Blade Width (Inch) | 1/4 to 1/2 |
| Blade Speeds (SFPM) | 70; 140; 270; 540 |
| Blade Length (Inch) | 120 |
| Blade Wheel Diameter (Inch) | 14 |
| Table Length (Inch) | 16 |
| Table Width (Inch) | 15 |
| Floor to Table Height (Inch) | 42-1/2 |
| Table Tilt Right (Degrees) | 45.00 |
| Horsepower (HP) | 1.00 |
| Voltage | 220 |
| Base Width (Inch) | 28 |
| Base Depth (Inch) | 24 |
| Overall Height (Inch) | 76 |
