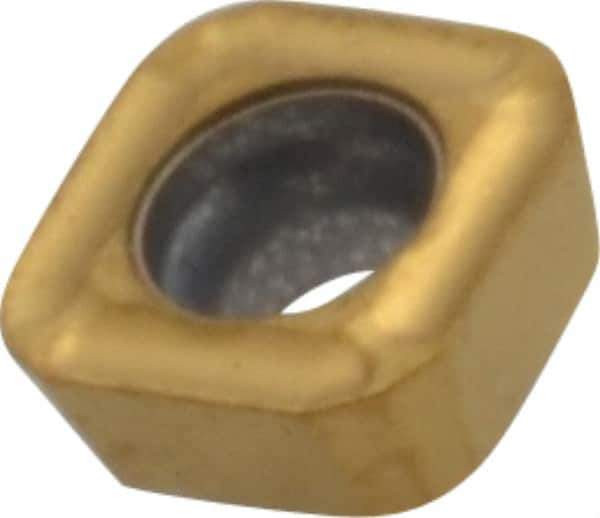

Seco - SPGX0502 C1 Grade T400D Carbide Indexable Drill Insert - TiAlN/TiN Finish, Square, 7/32" Inscribed Circle
Item #: 01015304
Brand: Seco
Model #: 77370
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | SPGX |
| Insert Size | 0502 |
| Material | Carbide |
| Material Grade | C1 |
| Manufacturer's Grade | T400D |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Thickness (mm) | 2.38 |
| Shape | Square |
| Hole Diameter (Decimal Inch) | 0.1020 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Chipbreaker | C1 |
