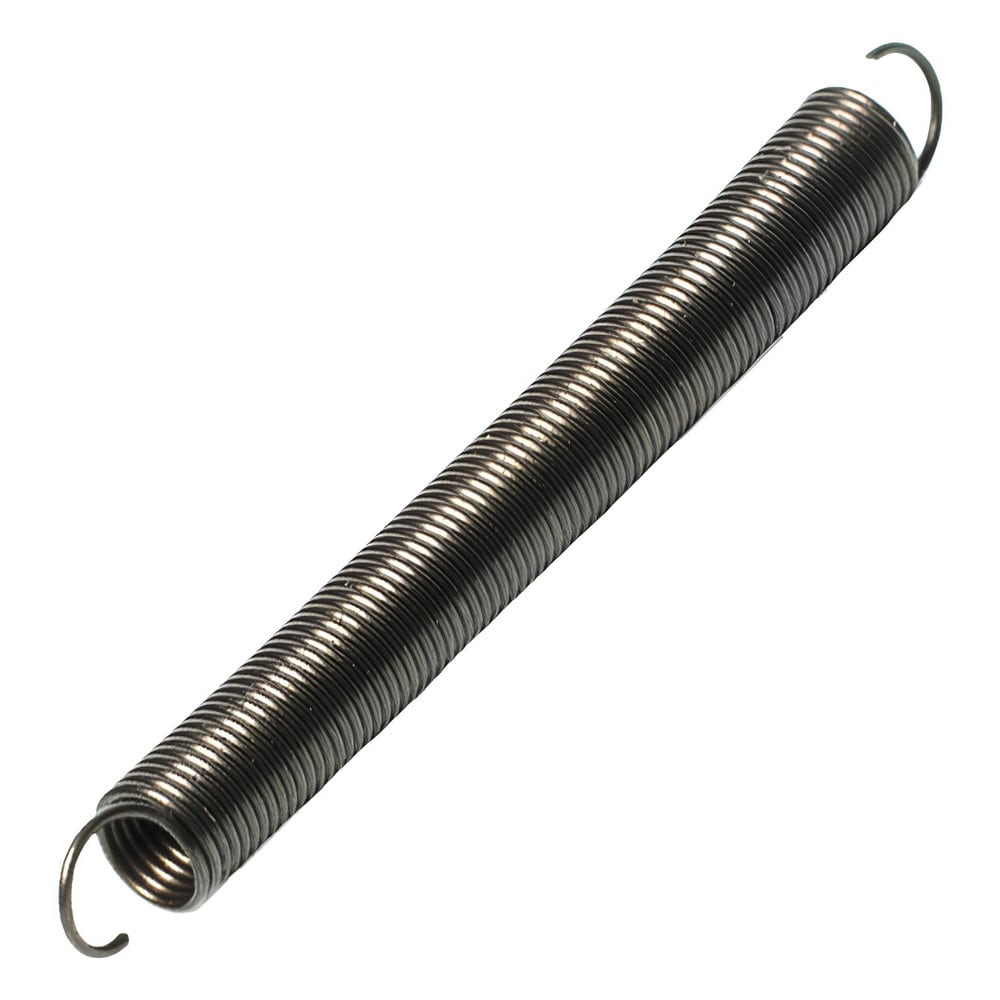

Extension Springs; End Type: Hook; Outside Diameter (mm): 15.0000; Spring Rate: 3.5000; Material: Music Wire; Overall Length (Decimal Inch): 2.3100
Item #: 03213741
Brand: Associated Spring Raymond
Model #: MHM1501400056M
Product Specifications
| End Type | Hook |
| Outside Diameter (mm) | 15.0000 |
| Spring Rate | 3.5000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 2.3100 |
| Initial Tension (N) | 6.7 |
| Maximum Extended Length (mm) | 134.00 |
| Free Length (mm) | 55.900 |
| Inside Hook Length (Fractional Inch) | 2-3/16 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 1.40 |
| UNSPSC Code | 31161907 |
