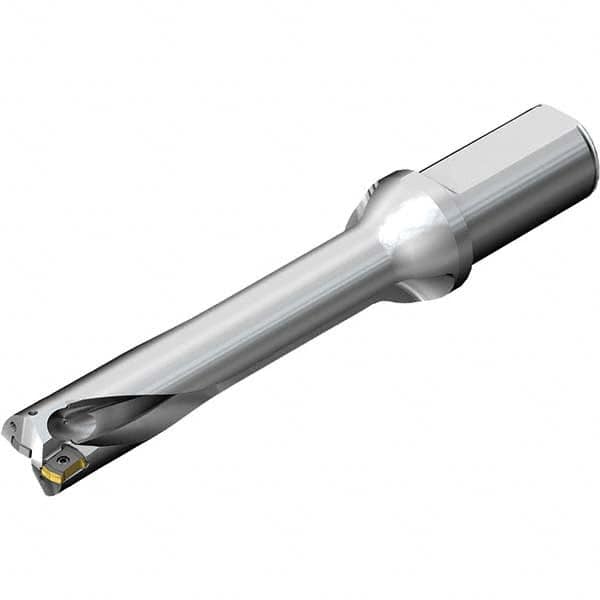

Sandvik Coromant - 7-1/2" Max Drill Depth, 5xD, 1-1/2" Diam, Indexable Insert Drill
Item #: 13268719
Brand: Sandvik Coromant
Model #: 7548945
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-05 |
| Drill Diameter (Inch) | 1-1/2 |
| Maximum Drill Depth (Inch) | 7-1/2 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 11.5729 |
| Insert Compatibility | DS20-0508-C |
| Body Length (Decimal Inch) | 7.6540 |
| Series | CoroDrill DS20 |
