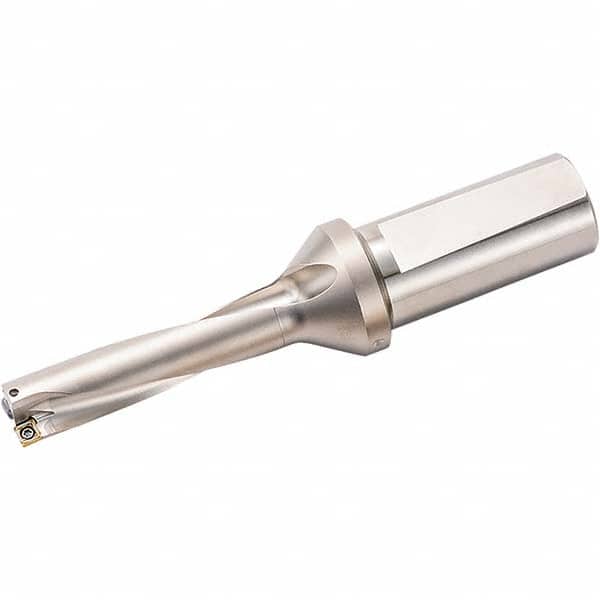

Kyocera - 4.1339" Max Drill Depth, 3xD, 1.4" Diam, Indexable Insert Drill
Item #: 10625317
Brand: Kyocera
Model #: 8862929
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (Decimal Inch) | 1.4000 |
| Maximum Drill Depth (Decimal Inch) | 4.1339 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 9.7560 |
| Insert Compatibility | SCMT110410; SCMT110406 |
| Body Length (Decimal Inch) | 7.0390 |
| Shank Length (Decimal Inch) | 2.7170 |
| Collar Diameter (Decimal Inch) | 1.9290 |
| Series | DRV Magic Drill |
