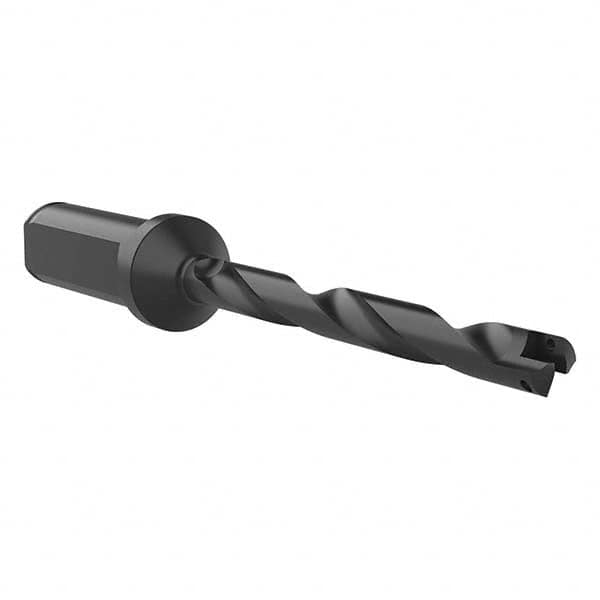

Allied Machine and Engineering - 3/8" to 27/64" Diam 3-3/8" Max Depth Helical Flute Spade Drill
Item #: 12329256
Brand: Allied Machine and Engineering
Model #: 245Y0H-075F
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | Y |
| Minimum Drill Diameter (Inch) | 3/8 |
| Maximum Drill Diameter (Inch) | 27/64 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Standard Plus Length |
| Overall Length (Inch) | 6-43/64 |
| Maximum Drill Depth (Inch) | 3-3/8 |
| Flute Type | Helical Flute |
| Body Length (Inch) | 4-35/64 |
| Shank Length (Inch) | 2-1/32 |
| Series Code/Seat Size | Y |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
