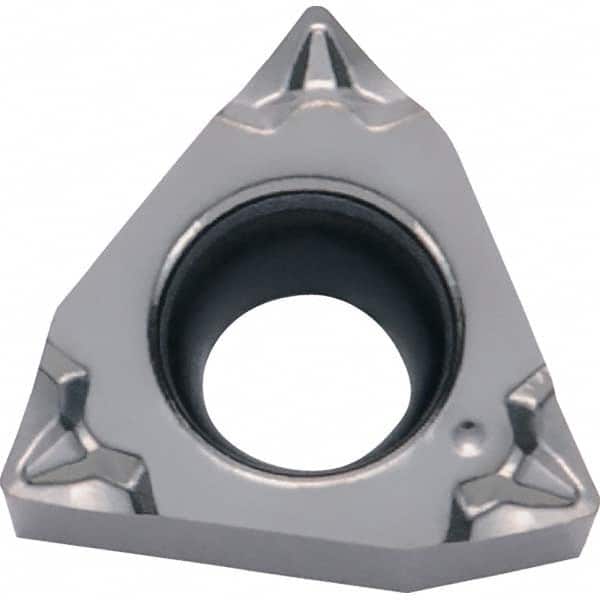

Kyocera - WBGT12105 MFP-PF Grade PR1535 Carbide Turning Insert
Item #: 96192158
Brand: Kyocera
Model #: 8862883
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WBGT |
| Insert Size | 12105 |
| Material | Carbide |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Chip Breaker | MFP-PF |
| Hole Diameter (Decimal Inch) | 0.0906 |
| ISO Number | WBGT060102MFPR-PF |
| Rake | Positive |
| Relief Angle | 5 |
| Coating Process | PVD |
| Manufacturers Catalog Number | WBGT12105MFPRPF PR1535 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Series | WBGT |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Trigon |
