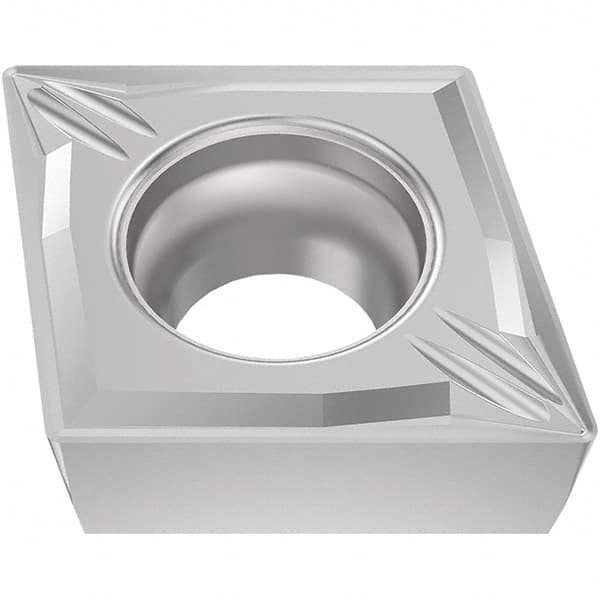

Seco - CCMT432 MF2 Grade TM1501 Carbide Turning Insert
Item #: 18610089
Brand: Seco
Model #: 03275972
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 432 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4752 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | TM1501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MF2 |
| Overall Length (Decimal Inch) | 0.5079 |
| Hole Diameter (Decimal Inch) | 0.2205 |
| ISO Number | CCMT120408 |
| Lead Angle | 95.000 |
| Rake | Positive |
| Rake Angle | 18 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CCMT432-MF2 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
