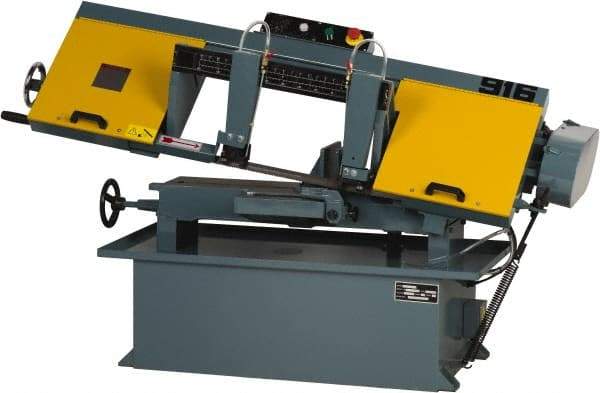

Enco - 9 x 16" Max Capacity, Manual Step Pulley Horizontal Bandsaw - 50, 125, 200 & 275 SFPM Blade Speed, 220 Volts, 45°, 1 hp, 1 Phase
Item #: 00919522
Brand: Enco
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) (Inch) | 9 x 16 |
| Maximum Capacity (Rounds) (Inch) | 9 |
| Phase | 1 |
| Voltage | 220 |
| Coolant System | No |
| Angular Cuts at 45 Degrees (mm) | 180 (Round); 180 (Square); 180 x 220 (Rectangular) |
| Angular Cuts at 45 Degrees (Inch) | 7 (Round); 7 (Square); 7 x 8-1/2 (Rectangular) |
| Blade Width (mm) | 25.40 |
| Blade Width (Decimal Inch) | 1.0000 |
| Blade Speeds (SFPM) | 50; 125; 200; 275 |
| Blade Speeds (m/min) | 15.00; 38.00; 61.00; 84.00 |
| Blade Length (Decimal Inch) | 128.5000 |
| Blade Length (mm) | 3263.90 |
| Blade Thickness (Decimal Inch) | 0.0354 |
| Horsepower (HP) | 1.00 |
