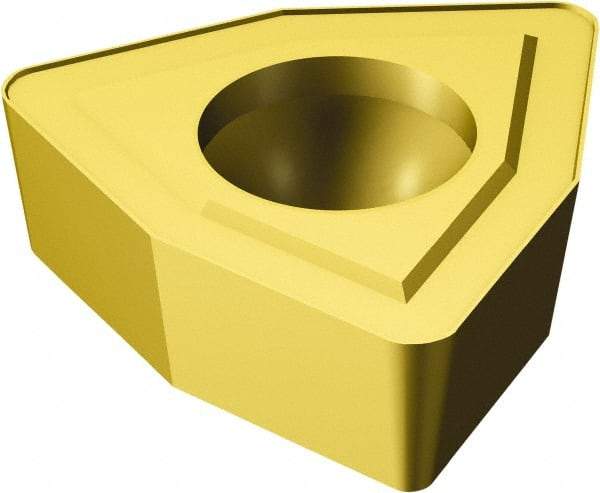

Sandvik Coromant - WCMX6 53 Grade 1020 Carbide Indexable Drill Insert - TiN Finish, Trigon, 3/8" Inscribed Circle
Item #: 00890475
Brand: Sandvik Coromant
Model #: 5756168
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 6 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Trigon |
| Width (Decimal Inch) | 0.3750 |
| Width (mm) | 9.53 |
| Length (mm) | 9.53 |
| Length (Decimal Inch) | 0.3750 |
| Hole Diameter (mm) | 3.70 |
| Hole Diameter (Decimal Inch) | 0.1457 |
| Relief Angle | 7 |
| Included Angle | 7 |
| Coating | TiN |
| Coating Process | PVD |
| Chipbreaker | 53 |
