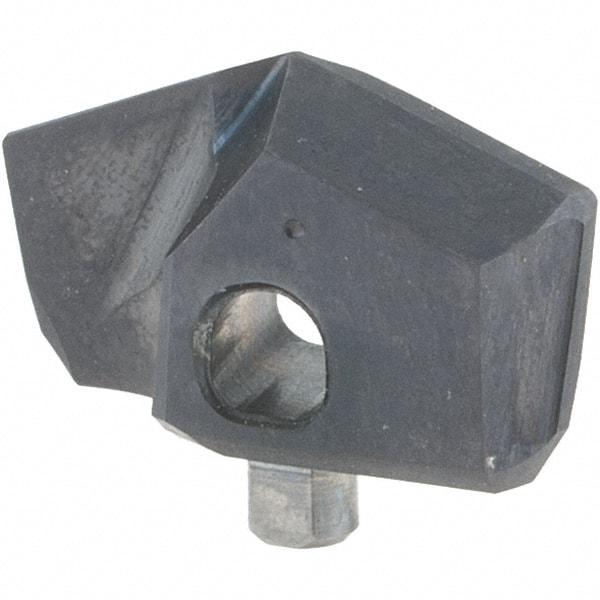

Guhring - Series 4112, 1/2" Diam Grade DK460UF Replaceable Drill Tip - Carbide, Nano-FIREX Finish, 125 Seat Size
Item #: 00865873
Brand: Guhring
Model #: 9041120127000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
nano-FIREX is a micro-layered coating that combines the characteristics and universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. The nano-FIREX(R) structure increases overall thickness and shock resistance when compared to FIREX . FIREX is a proprietary coating exclusive to Guhring, Inc.
| Product Specifications | |
|---|---|
| Diameter (mm) | 12.70 |
| Diameter (Decimal Inch) | 0.5000 |
| Diameter (Inch) | 1/2 |
| Material | Carbide |
| Material Grade | K20/K40 |
| Manufacturer's Grade | DK460UF |
| Series | 4112 |
| Coating | Nano-FIREX |
| Insert Seat Size | 125 |
| Through Coolant | NonThrough Coolant |
| Coating Process | PVD |
| Height (mm) | 7.70 |
| Height (Decimal Inch) | 0.3032 |
| Width (mm) | 5.00 |
| Insert Geometry | 2-Facet |
