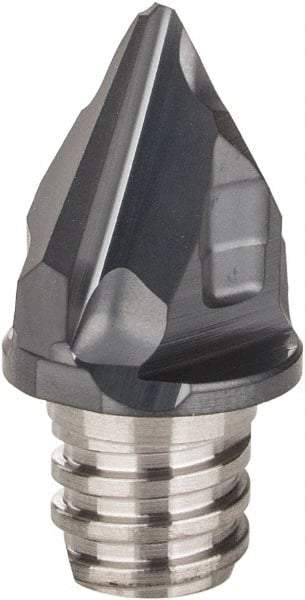

Iscar - MM HCD Grade IC908 Carbide Chamfer Milling Tip Insert - TiAlN Finish, 2 Flutes, 0.394" Cutting Diam, 3/8" Depth of Cut, 0.463" Extension
Item #: 00762138
Brand: Iscar
Model #: 5604521
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HCD |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.3940 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.3740 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Chamfer/Countersink/Spot Drill |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.4630 |
| Thread Size | T06 |
| Manufacturers Catalog Number | MM HCD100-060-2T06 |
