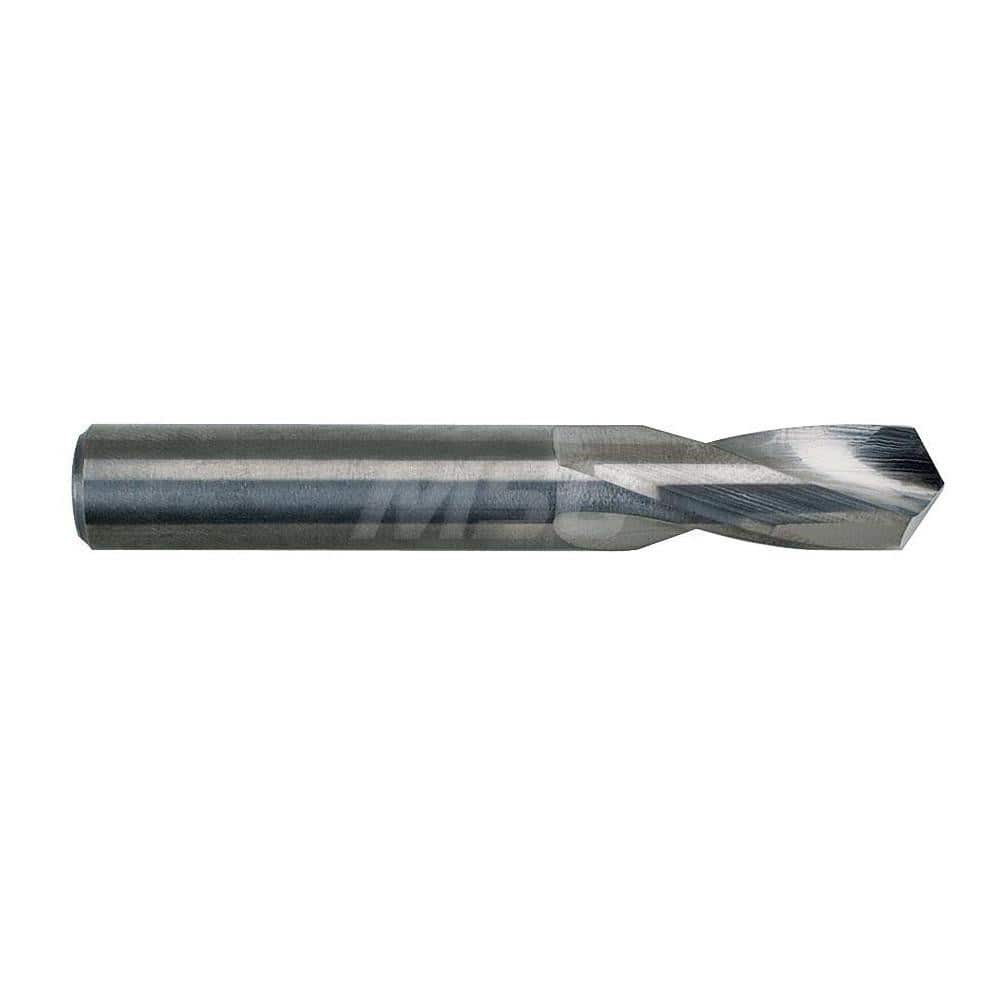

Screw Machine Length Drill Bit: 0.126″ Dia, 118 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 226
Item #: 00687707
Brand: M.A. Ford?
Model #: 22612600
Product Specifications
| Drill Bit Size (mm) | 3.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1260 |
| Drill Bit Size (Decimal Inch) | 0.1260 |
| Overall Length (mm) | 49.00 |
| Overall Length (Decimal Inch) | 1.9291 |
| Shank Diameter (mm) | 3.20 |
| Series | 226 |
| Number of Margins | 1 |
| Drill Length Type | Short |
| Point Type | Four Facet |
| Shank Length (Decimal Inch) | 1.2205 |
| Shank Length (mm) | 31.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.013 mm |
| Flute Length (mm) | 18.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
| Specification Designation | DIN |
