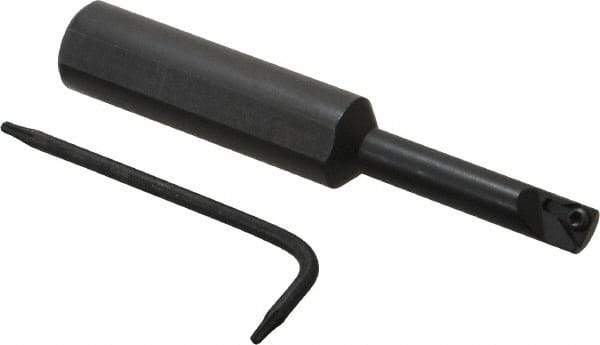

Seco - 0.3" Min Bore Diam, 3-1/4" OAL, 1/2" Shank Diam, STLD Indexable Boring Bar - 1-1/4" Max Bore Depth, TD.. 1.2 Insert, Screw Holding Method
Item #: 00546986
Brand: Seco
Model #: 57664
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | STLD |
| Minimum Bore Diameter (Decimal Inch) | 0.3000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 3.2500 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | TD.. 1.2 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.1750 |
| Insert Thickness (Decimal Inch) | 0.0470 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Complete Insert Compatibility | TDAB 1.21.50; TDAB 1.21.51; TDCH 1.21.50.5L; TDCH 1.21.50.5R; TDCH 1.21.51L; TDCH 1.21.51R |
| Toolholder Material | Steel |
