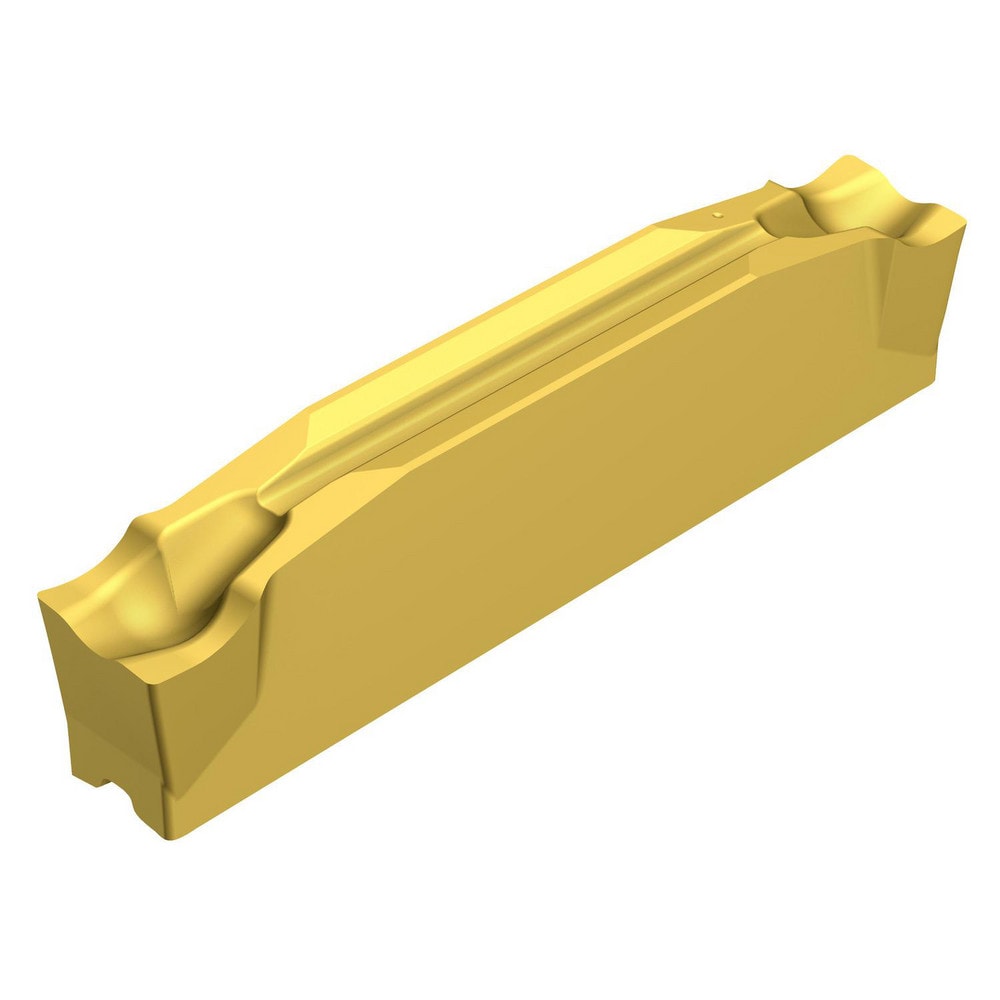

Cutoff Insert: C2IF2L02500502CM 1135, Carbide, 2.50 mm Cutting Width, 0.0984" Cutting Width
Item #: 00986331
Brand: Sandvik Coromant
Model #: 8194213
Product Specifications
| Insert Style | C2I |
| Insert Size Code | F2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1135 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Cutting Width (mm) | 2.50 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 0 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-off; Parting |
| Series | CoroCut 2 |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-F2L-0250-0502-CM1135 |
| Cutting Height (mm) | 18.89 |
| Cutting Height (Decimal Inch) | 0.7437 |
| Manufacturers Catalog Number | C2I-F2L-0250-0502-CM1135 |
| Insert Seat Size | F |
| Cutting Direction | Left Hand |
| Coating/Finish | TiCrN/Al2O3/TiN |
| UNSPSC Code | 23242105 |
