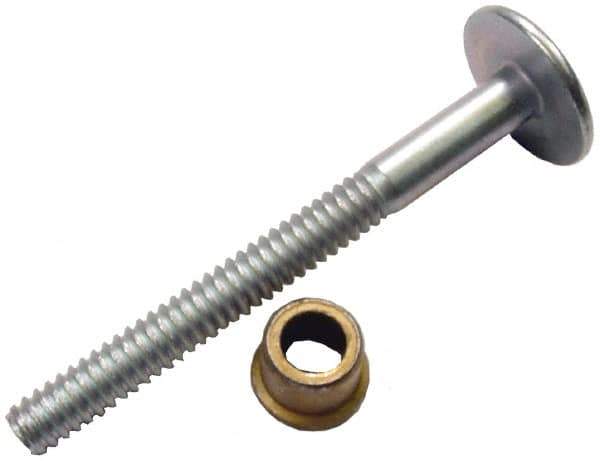

HUCK - Size 10 Button Head Steel Lockbolt Blind Rivet - 0.062" to 5/8" Grip, 0.48 to 0.52" Head Diam, 0.281" Max Hole Diam, 1/8" Length Under Head, 1/4" Body Diam
Item #: 00415836
Brand: HUCK
Model #: MGPB-R8-10G-PKT
Exact Tooling IR#: 04
Features and Benefits
Lockbolt rivets have a locking groove design that provides strong, permanent connection in high-vibration applications.
Button head fasteners have cylindrical heads with curved tops and flat bearing surfaces. They slightly protrude out of the workpiece and are used for aesthetic purposes.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Lockbolt |
| Head Type | Button |
| Size Code | 10 |
| Rivet Material | Steel |
| Minimum Grip (Decimal Inch) | 0.0620 |
| Maximum Grip (Decimal Inch) | 0.6250 |
| Head Diameter (Decimal Inch) | 0.4800 to 0.520 |
| Minimum Hole Diameter (Decimal Inch) | 0.2810 |
| Maximum Hole Diameter (Decimal Inch) | 0.2810 |
| Rivet Material Grade | Class 2 |
| Length Under Head (Decimal Inch) | 0.1250 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Body Diameter (Inch) | 1/4 |
| Head Height (Decimal Inch) | 0.134 to 0.154 |
