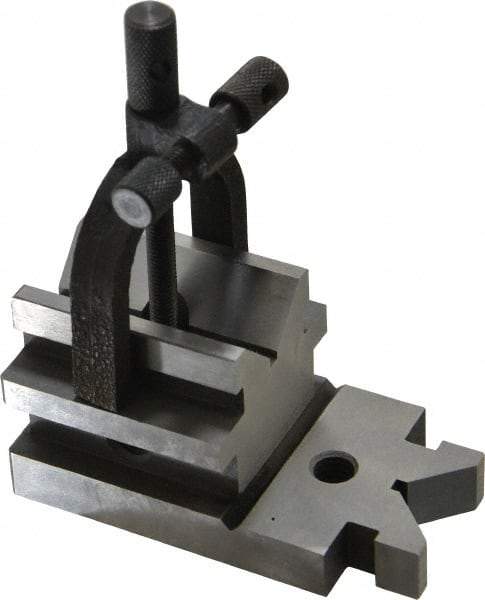

Value Collection - 1-5/16" Max Capacity, 90° Angle, Steel V-Block - 3-19/32" Long x 1-7/8" Wide x 1-7/8" High, Sold as Individual
Item #: 00325522
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Individual |
| Overall Length (mm) | 88.90 |
| Overall Length (Inch) | 3-19/32 |
| Overall Width (mm) | 47.63 |
| Overall Width (Inch) | 1-7/8 |
| Overall Height (mm) | 47.63 |
| Overall Height (Inch) | 1-7/8 |
| V Angle | 90.00 |
| Maximum Capacity of V (mm) | 33.34 |
| Maximum Capacity of V (Inch) | 1-5/16 |
| Material | Steel |
| Squareness Per 1 Inch (Decimal Inch) | 0.0003 |
| Squareness Per 1 Inch (micro m) | 8.00 |
| Hardness | 50-55 Rc |
| V Parallelism (Decimal Inch) | 0.0003 |
| V Parallelism (micro m) | 8.00 |
| Magnetic | No |
| Includes | Clamp |
