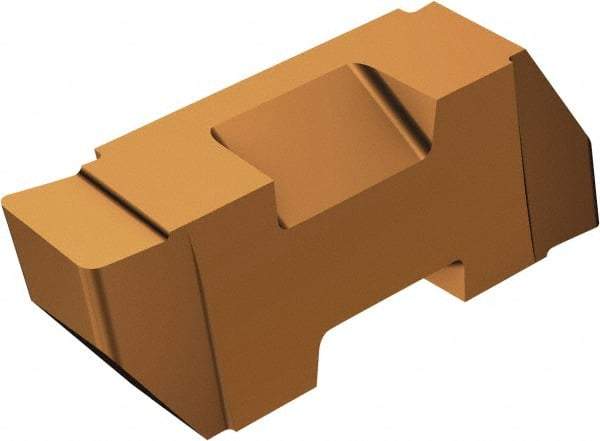

Sandvik Coromant - 3TLGP Grade 1125, 2.79mm Cutting Width Carbide Grooving Insert - 3.81mm Max Depth of Cut, Right Hand, 0.32mm Corner Radius, TiCrAlN/TiAlN Finish
Item #: 00173054
Brand: Sandvik Coromant
Model #: 5846589
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLGP |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (mm) | 2.79 |
| Cutting Width (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (mm) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Manufacturer's Grade | 1125 |
| Coating | TiCrAlN/TiAlN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Relief Angle | 10 |
| Insert Seat Size | 3 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0125 |
| Maximum Corner Radius (Decimal Inch) | 0.0125 |
| Corner Radius (mm) | 0.32 |
| Corner Radius (Decimal Inch) | 0.0125 |
| Coating Process | PVD |
| Overall Length (mm) | 16.10 |
| Overall Length (Decimal Inch) | 0.6339 |
| Series | Top Lok |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | TLGP-3110R 1125 |
| Manufacturers Catalog Number | TLGP-3110R 1125 |
| Overall Width (mm) | 2.79 |
| Overall Width (Decimal Inch) | 0.1100 |
| Insert Thickness (Decimal Inch) | 0.3440 |
