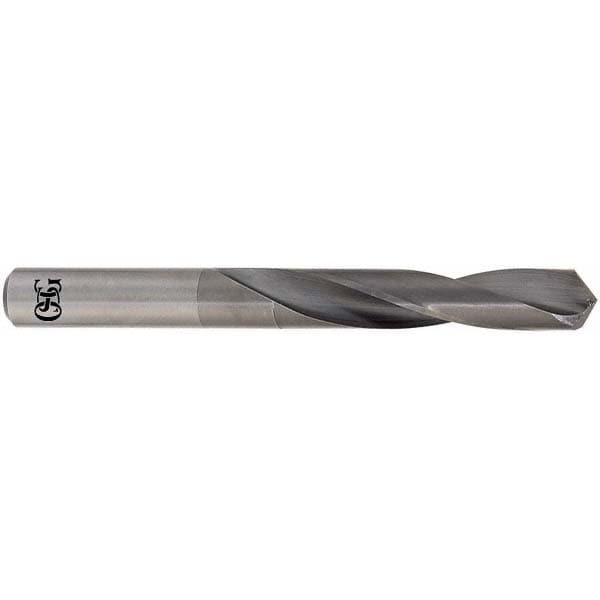

Jobber Drill: 4.50 mm Dia, 135 deg Point,
Item #: 55475792
Brand: OSG
Model #: 215-1772
Product Specifications
| Drill Bit Size (mm) | 4.5 |
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Slow |
| Flute Type | Slow Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Alloy Steel; Stainless Steel; Cast Iron; Titanium; Steel; Aluminum Silicate; Nickel Alloy; Titanium Alloy |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1772 |
| Overall Length (mm) | 55 |
| Overall Length (Decimal Inch) | 2.189 |
| Shank Diameter (mm) | 4.5 |
| Series | 215 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Flute By Diameter Ratio | 5xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0 to -0.013 mm |
| Flute Length (mm) | 29.00 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
| UNSPSC Code | 23241634 |
