VDI Style "CV" Toolholder Bushings - (Metric OD - Metric ID)

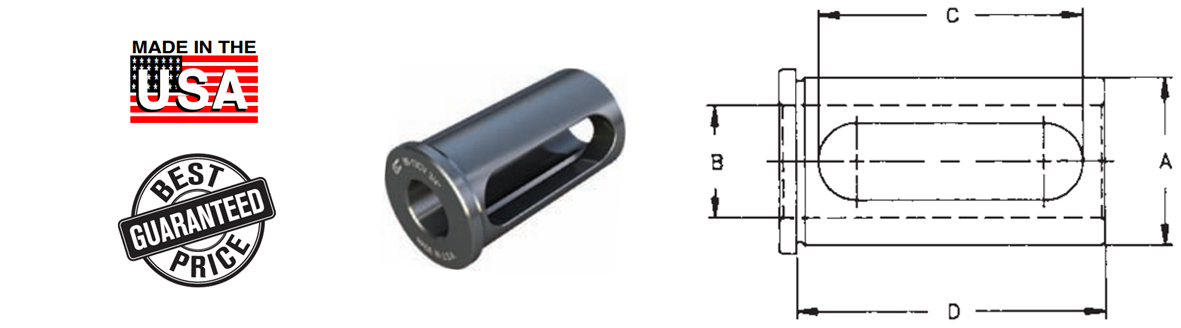

VDI Style Toolholder Bushing
Type “CV”:
Special length to fit your Form E2 Boring Bar Holder

VDI Style "CV" Toolholder Bushings Also Available In: Click Here

  • Inch OD – Inch ID
  • Inch OD – Metric ID
  • Metric OD – Inch ID
Prices are pulled from our database in real time. Press Add button to see product price.
Bushing
OD		 Slot Length
Under Head		 Bushing
ID		 Part Number
A C D B
32mm 50mm 60mm 10mm CNC 86-12CVM 10mm
12mm CNC 86-12CVM 12mm
16mm CNC 86-12CVM 16mm
20mm CNC 86-12CVM 20mm
25mm CNC 86-12CVM 25mm
40mm 60mm 70mm 10mm CNC 86-13CVM 10mm
12mm CNC 86-13CVM 12mm
16mm CNC 86-13CVM 16mm
20mm CNC 86-13CVM 20mm
25mm CNC 86-13CVM 25mm
32mm CNC 86-13CVM 32mm
