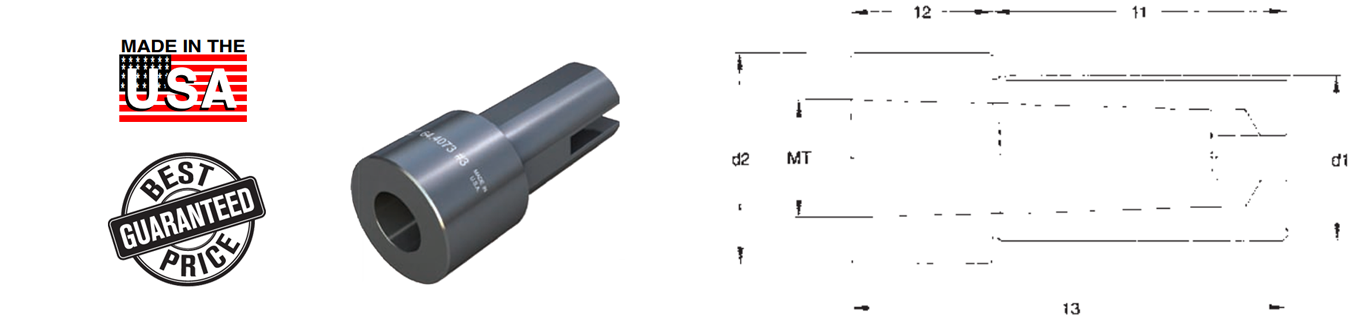

VDI Style Taper Drill Sockets - (Metric)
VDI Style
Adapt your VDI Boring Bar Holder into a Morse Taper Holder by adding this inexpensive Bushing. Save money by using your existing Boring Bar Holder and purchasing this inexpensive Bushing. Prices are pulled from our database in real time. Press Add button to see product price.
| d1 | MT | d2 | L1 | L2 | L3 | Part Number |
| 40mm | 1 | 52mm | 60mm | 16mm | 76mm | CNC86 64.4073#1M |
| 2 | 60mm | 16mm | 76mm | CNC86 64.4073#2M | ||
| 3 | 71mm | 43mm | 114mm | CNC86 64.4073#3M | ||
| 4 | 71mm | 43mm | 114mm | CNC86 64.4073#4M | ||
| 45mm | 1 | 57mm | 60mm | 16mm | 76mm | CNC86 64.4083#1M |
| 2 | 60mm | 16mm | 76mm | CNC86 64.4083#2M | ||
| 3 | 81mm | 33mm | 114mm | CNC86 64.4083#3M | ||
| 4 | 81mm | 33mm | 114mm | CNC86 64.4083#4M | ||
| 5 | 81mm | 69mm | 150mm | CNC86 64.4083#5M | ||
| 50mm | 1 | 64mm | 60mm | 16mm | 76mm | CNC86 64.4583#1M |
| 2 | 60mm | 16mm | 76mm | CNC86 64.4583#2M | ||
| 3 | 81mm | 33mm | 114mm | CNC86 64.4583#3M | ||
| 4 | 81mm | 33mm | 114mm | CNC86 64.4583#4M | ||
| 5 | 81mm | 69mm | 150mm | CNC86 64.4583#5M |
