VDI BAR PULLER
Bar Pullers to fit your DIN 69880 VDI 30MM and 40MM Turret and allow you the flexibility to hold a Variety of Shapes and Diameters of Material: Flat, Hex, Square and Round.
Why use a Bar Puller?
- They provide a simple and inexpensive method for automating any CNC Lathe.
- Costs far less than a bar feed.
- Bar Pullers don’t take up valuable Floor Space.
- They are Easy to Set up and use-no electrical interface required.
- Maintenance-Free Operation.
- They can be easily moved from one machine to another.
- A wide gripping range is obtained from a very compact design.
- Gripping Range: 1/8” to 3 1/8” Diameter

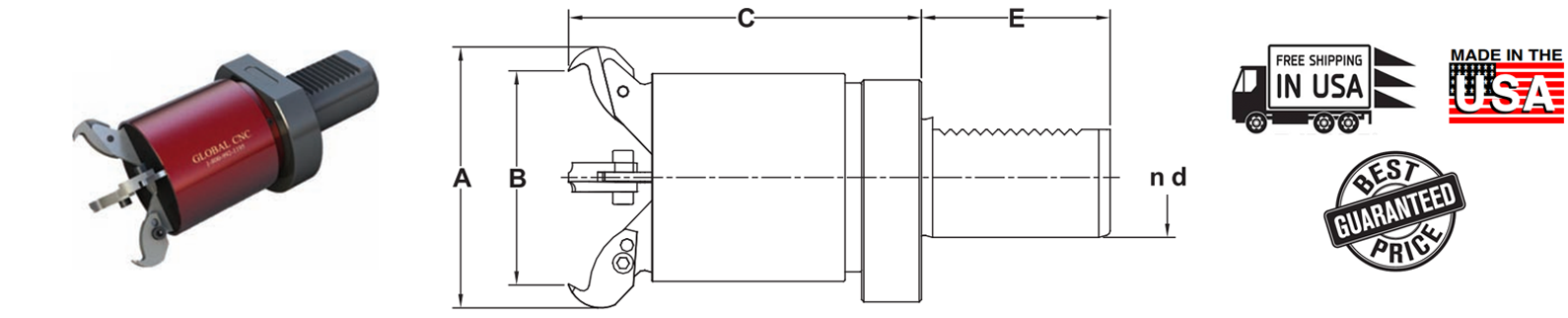

| D | A | B | C | E | Part Number | Price |
| 30mm | 100 | 1/8 - 3-1/8 | 114 | 55 | BP85.30 | CALL |
| 40mm | 100 | 1/8 - 3-1/8 | 118 | 63 | BP85.40 | CALL |
