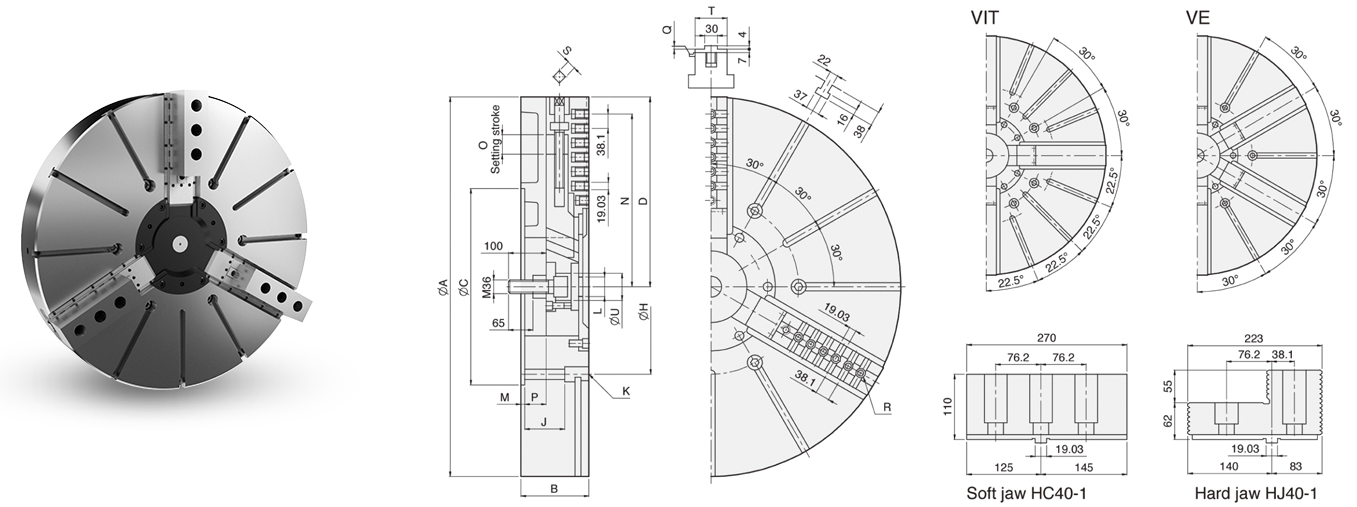

V(40”-79”) Power Chuck
power chuck (adapter excluded)
- Chucking operations of very large components external or internal clamping.
- Suitable for vertical lathe, due to the front protection of slide way.
- Master jaw with manual radial setting function.
| Jaws | Plunger Stroke (mm) |
Radial Jaw Stroke +(Manual setting) (mm) |
Max. Pull Force (kN) |
Max. Gripping Force (kN) |
Max. Operating Pressure (kgf / cm²) |
Max. Speed (r.p.m.) |
Weight (kg) |
Moment Of Inertia I (kg．m²) |
Matching Cylinder |
Matching Hard Jaw |
Matching Soft Jaw |
Gripping O.D. Range (mm) |
SPEC Part Number | Price Each | |
| 3 | 57 | 23 + (30) | 180 | 320 | 42.8 | 630 | 645 | 82 | MS250C | HJ40-1 | HC40-1 | Ø285-Ø1005 | 40" | V-240 | Call or Email |
| 4 | 550 | 700 | 89 | VIT-240 | Call or Email | ||||||||||
| 3 | 57 | 23 + (30) | 180 | 320 | 42.8 | 500 | 890 | 168 | MS250C | HJ40-1 | HC40-1 | Ø270-Ø1250 | 50" | V-250 | Call or Email |
| 4 | 400 | 940 | 177 | VIT-250 | Call or Email | ||||||||||
| 6 | 360 | 971 | 183 | VE-250 | Call or Email | ||||||||||
| 3 | 60 | 24 + (40) | 200 | 360 | 46.9 | 400 | 1800 | 548 | MS250C | HJ40-1 | HC40-1 | Ø390-Ø1600 | 63" | V-263 | Call or Email |
| 4 | 300 | 1700 | 518 | VIT-263 | Call or Email | ||||||||||
| 6 | 280 | 1800 | 548 | VE-263 | Call or Email | ||||||||||
| 6 | 60 | 24 + (40) | 200 | 360 | 46.9 | 230 | 2850 | 1350 | MS250C | HJ40-1 | HC40-1 | Ø440-Ø2000 | 79" | VE-279 | Call or Email |
| A | B | C | D max. |
H | J | K | L | M | N max. |
O | P max. |
P min. |
Q | R | S | T | U | DIM Part Number | Price Each | |
| 1005 | 180 | 520 | 502 | 463.6 | 108 | M24 | M52x1.5 | 8 | 457 | 30 | 59 | 2 | 4 | 7-M24 | 19 | 85 | 72 | 40" | V-240 | Call or Email |
| VIT-240 | Call or Email | |||||||||||||||||||
| 1250 | 180 | 520 | 623 | 463.6 | 108 | M24 | M52x1.5 | 8 | 563 | 30 | 59 | 2 | 4 | 10-M24 | 19 | 85 | 72 | 50" | V-250 | Call or Email |
| VIT-250 | Call or Email | |||||||||||||||||||
| VE-250 | Call or Email | |||||||||||||||||||
| 1600 | 220 | 720 | 796 | 647.6 | 144 | M30 | M52x1.5 | 8 | 738 | 40 | 82 | 22 | 6 | 13-M24 | 22 | 110 | 72 | 63" | V-263 | Call or Email |
| VIT-263 | Call or Email | |||||||||||||||||||
| VE-263 | Call or Email | |||||||||||||||||||
| 2000 | 238 | 720 | 996 | 647.6 | 159 | M30 | M52x1.5 | 8 | 914 | 40 | 100 | 40 | 6 | 17-M24 | 22 | 110 | 72 | 79" | VE-279 | Call or Email |
