V Power Chuck
power chuck (adapter excluded)
- High performance :
Similar high performance with N series. - Chuck mounting screws :
Metric or UNC socket head cap screws are supplied for installing the chuck to the spindle.
| Plunger Stroke (mm) |
Jaw stroke (In Dia.) (mm) |
Max. Pull Force (kgf) |
Max. Gripping Force (kgf) |
Max. Operating Pressure (kgf / cm²) |
Max. Speed (r.p.m.) |
Weight (kg) |
Moment Of Inertia I (kg．m²) |
Matching Cylinder |
Matching Hard Jaw |
Matching Soft Jaw |
Gripping O.D. Range (mm) |
SPEC Part Number | Price Each |
| 20 | 9.2 | 1835 | 5353 | 26.5 | 5200 | 12.7 | 0.048 | MS105C | HJ06 | HC06 | Ø18-Ø165 | V-206 | Call or Email |
| 21 | 9.7 | 2549 | 7648 | 25.5 | 4500 | 23.8 | 0.137 | MS125C | HJ08 | HC08 | Ø26-Ø210 | V-208 | Call or Email |
| 25 | 8.8 | 2957 | 11013 | 28.6 | 4000 | 36.4 | 0.3 | MS125C | HJ10 | HC10 | Ø26-Ø254 | V-210 | Call or Email |
| 30 | 10.5 | 4181 | 15907 | 27.5 | 3300 | 62.3 | 0.78 | MS150C | HJ12-1 | HC12-1 | Ø26-Ø304 | V-212 | Call or Email |
| 35 | 16 | 8362 | 25391 | 32.6 | 3000 | 106 | 1.94 | MS200C | HJ15-1 | HC15-1 | Ø68-Ø381 | V-215 | Call or Email |
| 35 | 16 | 8362 | 25391 | 32.6 | 2700 | 122 | 3.09 | MS200C | HJ15-1 | HC15-1 | Ø98-Ø450 | V-218 | Call or Email |

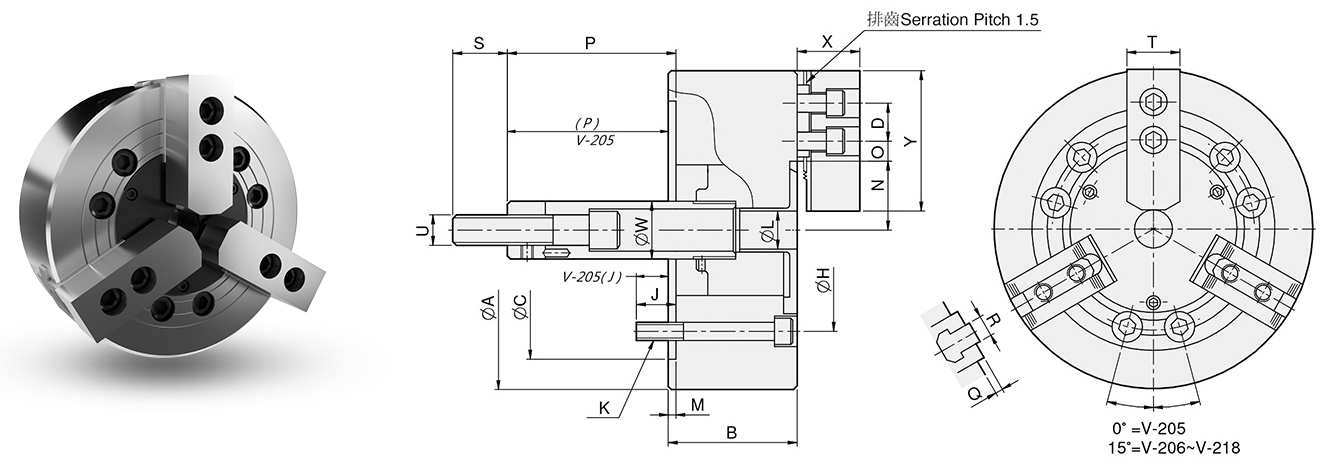

| A | B | C | D | H | J | K | L | M | N max. |
O max. |
O min. |
P max. |
P min. |
Q | R | S | T | U | W | X | Y | DIM Part Number | Price Each |
| 165 | 74 | 140 | 20 | 104.78 | 14 | 6-M10x70 | 21 | 5 | 38.7 | 15.25 | 7.75 | 104.6 | 84.6 | 4 | 12 | 36 | 31 | M16x2.0 | 34 | 39 | 73 | V-206 | Call or Email |
| 210 | 85 | 170 | 25 | 133.35 | 20 | 6-M12x85 | 25 | 5 | 46.75 | 22.25 | 8.75 | 132 | 111 | 5 | 14 | 36 | 35 | M20x2.5 | 38 | 41 | 95 | V-208 | Call or Email |
| 254 | 89 | 220 | 30 | 171.45 | 18 | 6-M16x85 | 34 | 5 | 51.1 | 30.75 | 9.75 | 158 | 133 | 5 | 16 | 36 | 40 | M20x2.5 | 45 | 46 | 110 | V-210 | Call or Email |
| 304 | 106 | 220 | 30 | 171.45 | 23 | 6-M16x105 | 34 | 6 | 61 | 48.75 | 9.75 | 163 | 133 | 5 | 18 | 36 | 50 | M20x2.5 | 50 | 54 | 130 | V-212 | Call or Email |
| 381 | 114 | 300 | 43 | 235 | 29 | 6-M20x115 | --- | 6 | 77.5 | 49.75 | 21.25 | 104 | 69 | 2 | 25.5 | 55 | 62 | M30x3.5 | 60 | 63 | 165 | V-215 | Call or Email |
| 450 | 114 | 300 | 43 | 235 | 29 | 6-M20x115 | --- | 6 | 108 | 49.75 | 21.25 | 92 | 57 | 2 | 25.5 | 55 | 62 | M30x3.5 | 60 | 63 | 165 | V-218 | Call or Email |
