Type ZS Bushing (Short Series) - (Metric OD - Metric ID)
The most flexible Toolholder Bushing for all types of CNC Turning Centers, Turret Lathes and Chuckers. The Elongated Slot gives the user a complete interchangeability with all brands of equipment. The added Set Screws in the Head allow for increased rigidity. The bushings are hardened and precision ground concentric. Can also be used for Preset Tooling.
Type ZS Bushings Also Available In: Click Here
- Inch OD – Inch ID
- Inch OD – Metric ID
- Metric OD – Inch ID
| Bushing OD |
Length of Slot |
Head Thickness |
Length Under Head |
Bushing ID |
Part Number |

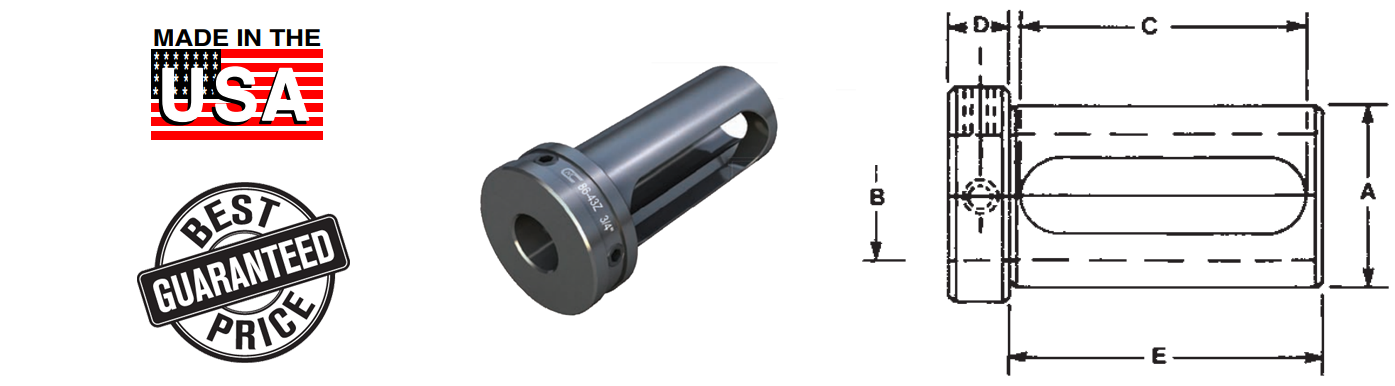

| A | C | D | E | B | |
| 32mm | 1-7/8" | 5/8" | 2-1/4" | 10mm | CNC 86-42ZSM 10mm |
| 12mm | CNC 86-42ZSM 12mm | ||||
| 16mm | CNC 86-42ZSM 16mm | ||||
| 20mm | CNC 86-42ZSM 20mm | ||||
| 25mm | CNC 86-42ZSM 25mm | ||||
| 40mm | 2-1/8" | 3/4" | 2-1/2" | 10mm | CNC 86-43ZSM 10mm |
| 12mm | CNC 86-43ZSM 12mm | ||||
| 16mm | CNC 86-43ZSM 16mm | ||||
| 20mm | CNC 86-43ZSM 20mm | ||||
| 25mm | CNC 86-43ZSM 25mm | ||||
| 32mm | CNC 86-43ZSM 32mm | ||||
| 45mm | 2-3/8" | 3/4" | 2-3/4" | 12mm | CNC 86-44ZSM 12mm |
| 16mm | CNC 86-44ZSM 16mm | ||||
| 20mm | CNC 86-44ZSM 20mm | ||||
| 25mm | CNC 86-44ZSM 25mm | ||||
| 32mm | CNC 86-44ZSM 32mm | ||||
| 40mm | CNC 86-44ZSM 40mm | ||||
| 50mm | 2-5/8" | 3/4" | 3" | 12mm | CNC 86-45ZSM 12mm |
| 16mm | CNC 86-45ZSM 16mm | ||||
| 20mm | CNC 86-45ZSM 20mm | ||||
| 25mm | CNC 86-45ZSM 25mm | ||||
| 32mm | CNC 86-45ZSM 32mm | ||||
| 40mm | CNC 86-45ZSM 40mm | ||||
| 45mm | CNC 86-45ZSM 45mm | ||||
| 65mm | 3-1/8" | 3/4" | 3-1/2" | 16mm | CNC 86-46ZSM 16mm |
| 20mm | CNC 86-46ZSM 20mm | ||||
| 25mm | CNC 86-46ZSM 25mm | ||||
| 32mm | CNC 86-46ZSM 32mm | ||||
| 40mm | CNC 86-46ZSM 40mm | ||||
| 45mm | CNC 86-46ZSM 45mm | ||||
| 50mm | CNC 86-46ZSM 50mm | ||||
| 80mm | 3-3/8" | 3/4" | 3-3/4" | 25mm | CNC 86-47ZSM 25mm |
| 32mm | CNC 86-47ZSM 32mm | ||||
| 40mm | CNC 86-47ZSM 40mm | ||||
| 50mm | CNC 86-47ZSM 50mm | ||||
| 60mm | CNC 86-47ZSM 60mm | ||||
| 65mm | CNC 86-47ZSM 65mm | ||||
| 90mm | 3-7/8" | 1" | 4-1/2" | 32mm | CNC 86-48ZSM 32mm |
| 40mm | CNC 86-48ZSM 40mm | ||||
| 50mm | CNC 86-48ZSM 50mm | ||||
| 60mm | CNC 86-48ZSM 60mm | ||||
| 65mm | CNC 86-48ZSM 65mm | ||||
| 100mm | 4-3/8" | 1" | 5" | 40mm | CNC 86-49ZSM 40mm |
| 50mm | CNC 86-49ZSM 50mm | ||||
| 60mm | CNC 86-49ZSM 60mm | ||||
| 65mm | CNC 86-49ZSM 65mm | ||||
| 80mm | CNC 86-49ZSM 80mm |
