Type LBF Bushing - (Metric OD - Metric ID)
These LBF Type Bushings are manufactured with a flat for clamping the Toolholder and two set screws for clamping a variety of Drills, Boring Bars and other Shank Tools. Equipped with two clearance notches for coolant. Are Heat Treated and precision ground concentric. This Universal Style is good for Coolant Through the Tool applications due to its solid configuration. For use on all Okuma CNC Machines.
Type LBF Bushings Also Available In: Click Here
- Inch OD – Inch ID
- Inch OD – Metric ID
- Metric OD – Inch ID

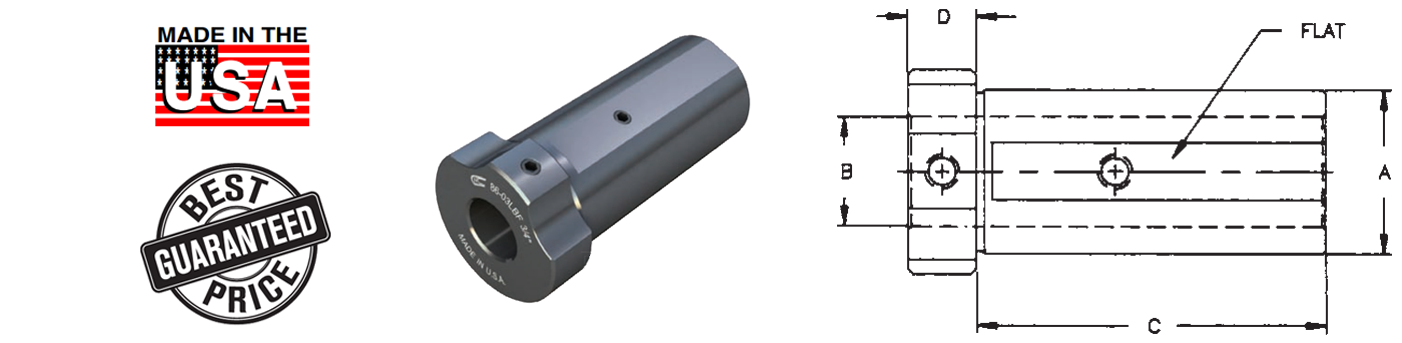

| Bushing OD |
Length Under Head |
Head Thickness |
Bushing ID |
Part Number |
| A | C | D | B | |
| 32mm | 2-13/16" | 5/8" | 10mm | CNC 86-12LBFM 10mm |
| 12mm | CNC 86-12LBFM 12mm | |||
| 16mm | CNC 86-12LBFM 16mm | |||
| 20mm | CNC 86-12LBFM 20mm | |||
| 25mm | CNC 86-12LBFM 25mm | |||
| 40mm | 3-5/32" | 5/8" | 10mm | CNC 86-03LBFM 10mm |
| 12mm | CNC 86-03LBFM 12mm | |||
| 16mm | CNC 86-03LBFM 16mm | |||
| 20mm | CNC 86-03LBFM 20mm | |||
| 25mm | CNC 86-03LBFM 25mm | |||
| 32mm | CNC 86-03LBFM 32mm | |||
| 50mm | 3-3/4" | 3/4" | 12mm | CNC 86-05LBFM 12mm |
| 16mm | CNC 86-05LBFM 16mm | |||
| 20mm | CNC 86-05LBFM 20mm | |||
| 25mm | CNC 86-05LBFM 25mm | |||
| 32mm | CNC 86-05LBFM 32mm | |||
| 40mm | CNC 86-05LBFM 40mm | |||
| 45mm | CNC 86-05LBFM 45mm |
