Type L Bushing - (Metric OD - Metric ID)
All “L” style bushings are shoulder-less, have set screw clearance holes opposite the slot and have a split with a flat on the O.D.
“L” Style Bushings are used to adapt drills, boring bars and shank tools to any size in a standard turret or toolholder. CNC has full selection and assortment of these bushings. We can supply these to you, minimizing production downtime – allowing you to increase production.
Type L Bushings Also Available In: Click Here
- Inch OD – Inch ID
- Inch OD – Metric ID
- Metric OD – Inch ID
| Bushing OD |
Overall Length |
Length Dimensions |
Hole Size |
No. of Holes |
Bushing ID |
Part Number | |

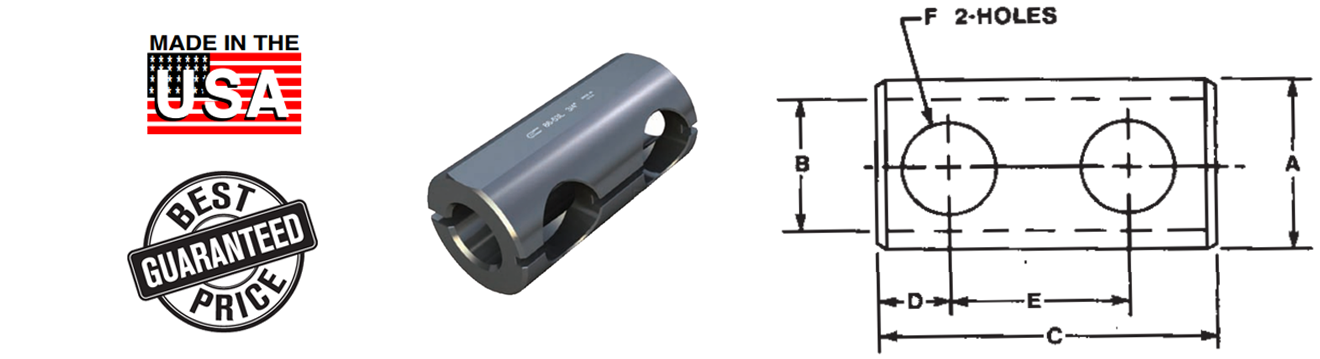

| A | C | D | E | F | B | ||
| 40mm | 3" | 3/4" | 1-5/8" | 7/8" | 2 | 10mm | CNC 86-53LM 10mm |
| 12mm | CNC 86-53LM 12mm | ||||||
| 16mm | CNC 86-53LM 16mm | ||||||
| 20mm | CNC 86-53LM 20mm | ||||||
| 25mm | CNC 86-53LM 25mm | ||||||
| 32mm | CNC 86-53LM 32mm | ||||||
| 45mm | 3" | 3/4" | 1-5/8" | 7/8" | 2 | 12mm | CNC 86-54LM 12mm |
| 16mm | CNC 86-54LM 16mm | ||||||
| 20mm | CNC 86-54LM 20mm | ||||||
| 25mm | CNC 86-54LM 25mm | ||||||
| 32mm | CNC 86-54LM 32mm | ||||||
| 40mm | CNC 86-54LM 40mm | ||||||
| 60mm | 4-1/2" | 7/8" | 2" | 1" | 2 | 16mm | CNC 86-56LM 16mm |
| 20mm | CNC 86-56LM 20mm | ||||||
| 25mm | CNC 86-56LM 25mm | ||||||
| 32mm | CNC 86-56LM 32mm | ||||||
| 40mm | CNC 86-56LM 40mm | ||||||
| 50mm | CNC 86-56LM 50mm | ||||||
| 70mm | 4-1/2" | 7/8" | 2" | 1" | 2 | 20mm | CNC 86-57LM 20mm |
| 25mm | CNC 86-57LM 25mm | ||||||
| 32mm | CNC 86-57LM 32mm | ||||||
| 40mm | CNC 86-57LM 40mm | ||||||
| 50mm | CNC 86-57LM 50mm | ||||||
