Type CS Bushing (Short Series) - (Metric OD - Metric ID)
Introducing the “all new” CNC Type CS Bushing designed for universal use on all CNC Turning machines. The Bushings are hardened & precision ground concentric.
Type CS Bushings Also Available In: Click Here
- Inch OD – Inch ID
- Inch OD – Metric ID
- Metric OD – Inch ID

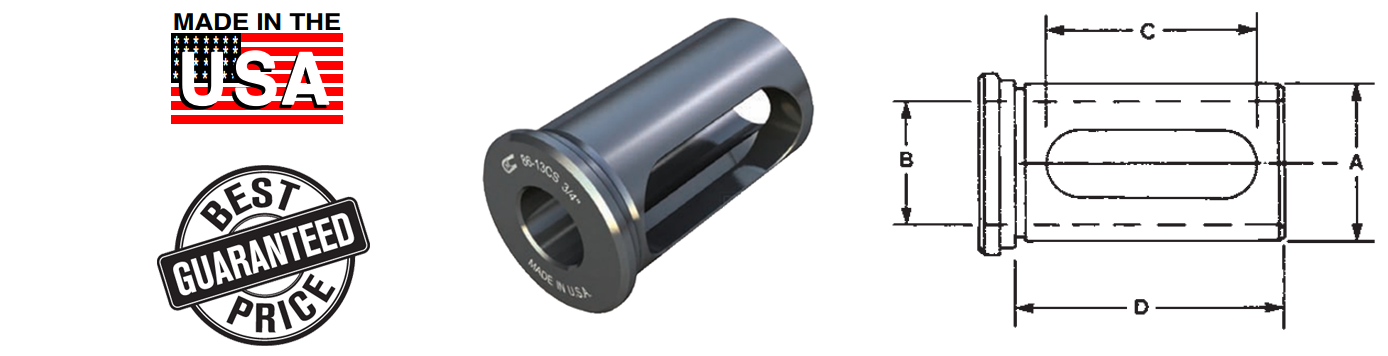

| Bushing OD |
Length of Slot |
Length Under Head |
Bushing ID |
Part Number |
| A | C | D | B | |
| 20mm | 1-1/8" | 1-1/2" | 6mm | CNC 86-10CSM 6mm |
| 8mm | CNC 86-10CSM 8mm | |||
| 10mm | CNC 86-10CSM 10mm | |||
| 12mm | CNC 86-10CSM 12mm | |||
| 25mm | 1-3/8" | 1-3/4" | 8mm | CNC 86-11CSM 8mm |
| 10mm | CNC 86-11CSM 10mm | |||
| 12mm | CNC 86-11CSM 12mm | |||
| 16mm | CNC 86-11CSM 16mm | |||
| 20mm | CNC 86-11CSM 20mm | |||
| 32mm | 1-3/4" | 2-1/8" | 10mm | CNC 86-12CSM 10mm |
| 12mm | CNC 86-12CSM 12mm | |||
| 16mm | CNC 86-12CSM 16mm | |||
| 20mm | CNC 86-12CSM 20mm | |||
| 25mm | CNC 86-12CSM 25mm | |||
| 40mm | 2-1/8" | 2-1/2" | 10mm | CNC 86-13CSM 10mm |
| 12mm | CNC 86-13CSM 12mm | |||
| 16mm | CNC 86-13CSM 16mm | |||
| 20mm | CNC 86-13CSM 20mm | |||
| 25mm | CNC 86-13CSM 25mm | |||
| 32mm | CNC 86-13CSM 32mm | |||
| 45mm | 2-5/8" | 3" | 12mm | CNC 86-14CSM 12mm |
| 16mm | CNC 86-14CSM 16mm | |||
| 20mm | CNC 86-14CSM 20mm | |||
| 25mm | CNC 86-14CSM 25mm | |||
| 32mm | CNC 86-14CSM 32mm | |||
| 40mm | CNC 86-14CSM 40mm | |||
| 50mm | 3" | 3-1/2" | 12mm | CNC 86-15CSM 12mm |
| 16mm | CNC 86-15CSM 16mm | |||
| 20mm | CNC 86-15CSM 20mm | |||
| 25mm | CNC 86-15CSM 25mm | |||
| 32mm | CNC 86-15CSM 32mm | |||
| 40mm | CNC 86-15CSM 40mm | |||
| 45mm | CNC 86-15CSM 45mm | |||
| 65mm | 3-1/2" | 4" | 20mm | CNC 86-16CSM 20mm |
| 25mm | CNC 86-16CSM 25mm | |||
| 32mm | CNC 86-16CSM 32mm | |||
| 40mm | CNC 86-16CSM 40mm | |||
| 45mm | CNC 86-16CSM 45mm | |||
| 50mm | CNC 86-16CSM 50mm | |||
| 80mm | 4-1/8" | 4-1/2" | 25mm | CNC 86-17CSM 25mm |
| 32mm | CNC 86-17CSM 32mm | |||
| 40mm | CNC 86-17CSM 40mm | |||
| 45mm | CNC 86-17CSM 45mm | |||
| 50mm | CNC 86-17CSM 50mm | |||
| 60mm | CNC 86-17CSM 60mm | |||
| 65mm | CNC 86-17CSM 65mm | |||
| 90mm | 4-3/4" | 5-1/4" | 25mm | CNC 86-18CSM 25mm |
| 32mm | CNC 86-18CSM 32mm | |||
| 40mm | CNC 86-18CSM 40mm | |||
| 45mm | CNC 86-18CSM 45mm | |||
| 50mm | CNC 86-18CSM 50mm | |||
| 60mm | CNC 86-18CSM 60mm | |||
| 65mm | CNC 86-18CSM 65mm |
