Type B Bushing - (Metric OD - Metric ID)
These split Type B Bushings are manufactured with flexible manufacturing systems, for all Types and sizes of CNC Lathes and Chuckers; are Heat Treated and precision ground concentric. It is used to adapt Drills, Boring Bars, and other Shank Tools.
Type B Bushings Also Available In: Click Here
- Inch OD – Inch ID
- Inch OD – Metric ID
- Metric OD – Inch ID

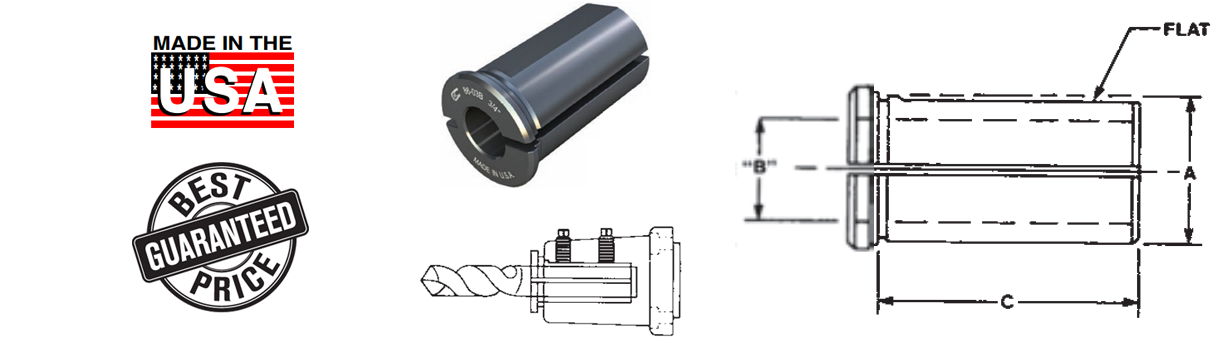

| Bushing OD |
Length Under Head |
Bushing ID |
Part Number |
| A | C | B | |
| 20mm | 1-1/2" | 6mm | CNC 86-01BM 6mm |
| 8mm | CNC 86-01BM 8mm | ||
| 10mm | CNC 86-01BM 10mm | ||
| 12mm | CNC 86-01BM 12mm | ||
| 25mm | 1-3/4" | 10mm | CNC 86-02BM 10mm |
| 12mm | CNC 86-02BM 12mm | ||
| 16mm | CNC 86-02BM 16mm | ||
| 20mm | CNC 86-02BM 20mm | ||
| 32mm | 2-1/8" | 10mm | CNC 86-12BM 10mm |
| 12mm | CNC 86-12BM 12mm | ||
| 16mm | CNC 86-12BM 16mm | ||
| 20mm | CNC 86-12BM 20mm | ||
| 25mm | CNC 86-12BM 25mm | ||
| 40mm | 2-1/2" | 10mm | CNC 86-03BM 10mm |
| 12mm | CNC 86-03BM 12mm | ||
| 16mm | CNC 86-03BM 16mm | ||
| 20mm | CNC 86-03BM 20mm | ||
| 25mm | CNC 86-03BM 25mm | ||
| 32mm | CNC 86-03BM 32mm | ||
| 45mm | 3" | 10mm | CNC 86-04BM 10mm |
| 12mm | CNC 86-04BM 12mm | ||
| 16mm | CNC 86-04BM 16mm | ||
| 20mm | CNC 86-04BM 20mm | ||
| 25mm | CNC 86-04BM 25mm | ||
| 32mm | CNC 86-04BM 32mm | ||
| 40mm | CNC 86-04BM 40mm | ||
| 50mm | 3-1/2" | 12mm | CNC 86-05BM 12mm |
| 16mm | CNC 86-05BM 16mm | ||
| 20mm | CNC 86-05BM 20mm | ||
| 25mm | CNC 86-05BM 25mm | ||
| 32mm | CNC 86-05BM 32mm | ||
| 40mm | CNC 86-05BM 40mm | ||
| 65mm | 4" | 20mm | CNC 86-06BM 20mm |
| 25mm | CNC 86-06BM 25mm | ||
| 32mm | CNC 86-06BM 32mm | ||
| 40mm | CNC 86-06BM 40mm | ||
| 45mm | CNC 86-06BM 45mm | ||
| 50mm | CNC 86-06BM 50mm | ||
| 80mm | 4-1/2" | 25mm | CNC 86-07BM 25mm |
| 32mm | CNC 86-07BM 32mm | ||
| 40mm | CNC 86-07BM 40mm | ||
| 45mm | CNC 86-07BM 45mm | ||
| 50mm | CNC 86-07BM 50mm | ||
| 60mm | CNC 86-07BM 60mm | ||
| 65mm | CNC 86-07BM 65mm | ||
| 90mm | 5-1/4" | 25mm | CNC 86-08BM 25mm |
| 32mm | CNC 86-08BM 32mm | ||
| 40mm | CNC 86-08BM 40mm | ||
| 45mm | CNC 86-08BM 45mm | ||
| 50mm | CNC 86-08BM 50mm | ||
| 60mm | CNC 86-08BM 60mm | ||
| 65mm | CNC 86-08BM 65mm |
