Taper Drill Sockets: Morse Taper - (Inch)
The New Headed Series:
All of our Taper Drill Sockets have been redesigned with a shoulder, as a “B” style, to further insure correct depth of the drilling operation. This new style also provides safety for secondary operations such as boring and reaming. It is held with set screws on two flats so that it will never push back or turn.
Our taper drill sockets are hardened, precision ground, and concentric within .0002 of an inch. They fit directly into tool holders and turrets to positively drive all morse taper shank tools, drills, reamers and counterbores.
The Headless Style “A” Series: Straight shank style “A” taper drill sockets are manufactured in limited quantities and sizes. Please contact our courteous sales staff for availability and pricing information. Prices are pulled from our database in real time. Press Add button to see product price.

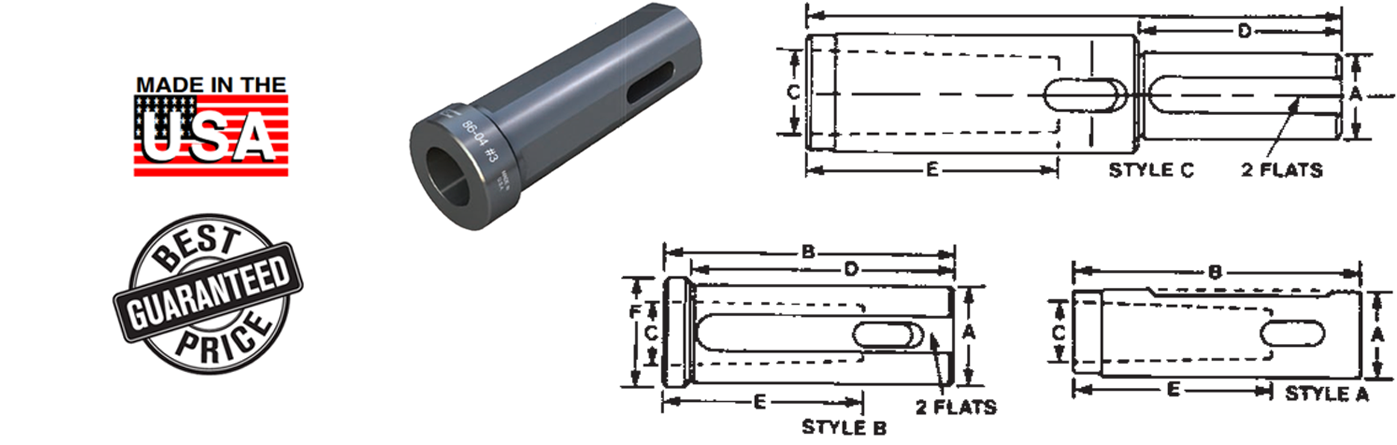

| Style | B | Morsed Taper |
D | E | F | Shank Dia. |
Part Number |
| C | A | ||||||
| A | 3-1/4" | #1 | 2-5/16" | 2-3/16" | 1" | 3/4" | CNC 86-01#1 |
| B | 3-3/4" | #1 | 3-1/8" | 2-3/16" | 1-1/4" | 1" | CNC 86-02#1 |
| B | 3-3/4" | #2 | 3-1/8" | 2-5/8" | 1-1/4" | 1" | CNC 86-02#2 |
| B | 4" | #1 | 3-3/8" | 2-3/16" | 1-1/2" | 1-1/4" | CNC 86-03#1 |
| B | 4" | #2 | 3-3/8" | 2-5/8" | 1-1/2" | 1-1/4" | CNC 86-03#2 |
| B | 4" | #3 | 4" | 3-1/4" | 1-1/2" | 1-1/4" | CNC 86-03#3 |
| B | 5" | #1 | 4-3/8" | 2-3/16" | 1-3/4" | 1-1/2" | CNC 86-04#1 |
| B | 5" | #2 | 4-3/8" | 2-5/8" | 1-3/4" | 1-1/2" | CNC 86-04#2 |
| B | 5" | #3 | 4-3/8" | 3-1/4" | 1-3/4" | 1-1/2" | CNC 86-04#3 |
| B | 5-3/4" | #4 | 4-3/8" | 4-1/8" | 1-3/4" | 1-1/2" | CNC 86-04#4 |
| B | 5-3/4" | #1 | 5-1/8" | 2-3/16" | 2" | 1-3/4" | CNC 86-05#1 |
| B | 5-3/4" | #2 | 5-1/8" | 2-5/8" | 2" | 1-3/4" | CNC 86-05#2 |
| B | 5-3/4" | #3 | 5-1/8" | 3-1/4" | 2" | 1-3/4" | CNC 86-05#3 |
| B | 5-3/4" | #4 | 4-3/8" | 4-1/8" | 2" | 1-3/4" | CNC 86-05#4 |
| C | 11-1/8" | #5 | 4-1/4" | 5-1/4" | 1-3/8" | 1-3/4" | CNC 86-06#5 |
| B | 6-1/8" | #2 | 5-1/2" | 2-5/8" | 2-1/4" | 2" | CNC 86-07#2 |
| B | 6-1/8" | #3 | 5-1/2" | 3-1/4" | 2-1/4" | 2" | CNC 86-07#3 |
| B | 6-1/8" | #4 | 5-1/2" | 4-1/8" | 2-1/4" | 2" | CNC 86-07#4 |
| C | 11-1/8" | #5 | 4-1/4" | 5-1/4" | 2-3/8" | 2" | CNC 86-08#5 |
| B | 5-3/4" | #2 | 5-1/8" | 2-5/8" | 2-3/4" | 2-1/2" | CNC 86-09#2 |
| B | 6-5/8" | #3 | 6" | 3-1/4" | 2-3/4" | 2-1/2" | CNC 86-09#3 |
| B | 6-5/8" | #4 | 6" | 4-1/8" | 2-3/4" | 2-1/2" | CNC 86-09#4 |
| B | 7-5/8" | #5 | 7" | 5-1/4" | 2-3/4" | 2-1/2" | CNC 86-09#5 |
| B | 6-5/8" | #4 | 6" | 4-1/8" | 3-3/8" | 3" | CNC 86-11#4 |
| B | 7-5/8" | #5 | 7" | 5-1/4" | 3-3/8" | 3" | CNC 86-12#5 |
| B | 6-5/8" | #4 | 6" | 4-1/8" | 2-1/2" | 2-1/4" | CNC 86-13#4 |
| B | 7-5/8" | #5 | 7" | 5-1/4" | 2-1/2" | 2-1/4" | CNC 86-14#5 |
| B | 6-5/8" | #4 | 6" | 4-1/8" | 3" | 2-3/4" | CNC 86-15#4 |
| B | 7-5/8" | #5 | 7" | 5-1/4" | 3" | 2-3/4" | CNC 86-16#5 |
