Square Toolholders

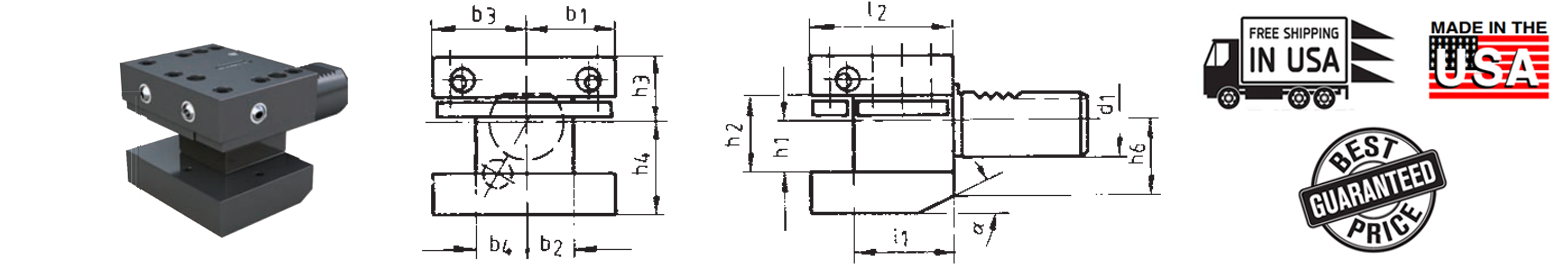

Square Toolholder – Form D1

Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.

d1	h1 in	h1 mm	b1	b2	b3	b4	h2	h3	h4	h8	L1	L2	α	Part Number
25	5/8	16	33	19	33	19	22	25	30	25	34	48	30	CNC86 41.2516
30	3/4	20	35	17	41	23	29	28	38	30	42	60	25	CNC86 41.3020
40	1	25	42.5	20.5	47.5	25.5	34	32.5	48	42	50	72	30	CNC86 41.4025
50	1-1/4	32	50	25.5	55	30.5	41	35	60		60	85		CNC86 41.5032
60	1-1/4	32	57.5	32.5	57.5	32.5	41	42.5	62.5		85	110		CNC86 41.6032
80	1-1/2	40	76	41	76	41	53	55	80		105	140		CNC86 41.8040

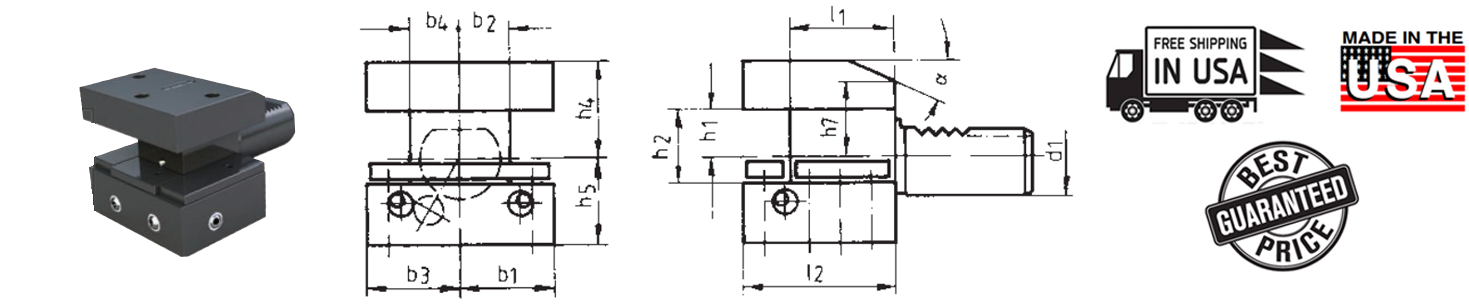

Square Toolholder Inverted
Form D2

Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.

d1	h1 in	h1 mm	b1	b2	b3	b4	h2	h4	h5	h7	L1	L2	α	Part Number
25	5/8	16	33	19	33	19	22	30	25	25	34	48	30	CNC86 42.2516
30	3/4	20	35	17	41	23	29	38	35	28	42	60	25	CNC86 42.3020
40	1	25	42.5	20.5	47.5	25.5	34	48	42.5	32.5	50	72	30	CNC86 42.4025
50	1-1/4	32	50	25.5	55	30.5	41	60	50		60	85		CNC86 42.5032
60	1-1/4	32	57.5	32.5	57.5	32.5	41	62.5	62.5		85	110		CNC86 42.6032
80	1-1/2	40	76	41	76	41	53	80	80		105	140		CNC86 42.8040
