Snap Jaws - Horizontal "Vee" Jaws
HOLD ROUND PIECES FROM .060 TO 4-1/8

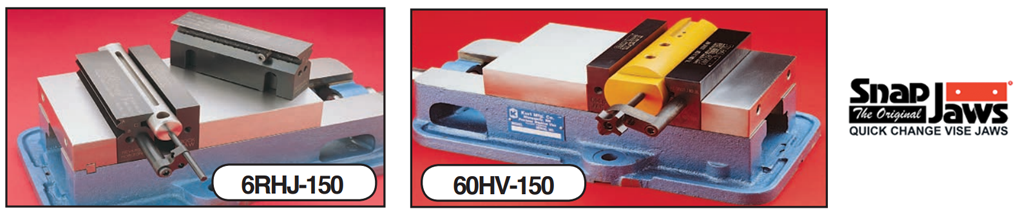

For tool room or production. Heat treated (HRC 54-58) and precision ground, these horizontal “Vee” Jaws are ideal for drilling cross holes, milling keyways, etc. Tapped holes in the bottom of the “Vee’s” accommodate end stops provided with the jaws. Additionally, WORKSTOP (shown in pictures) are included in every horizontal “Vee” jaw set.
*SET CONTAINS 1 VEE JAW, 1 ROCK JAW, WORKSTOP, ENDSTOPS AND SCREWS Prices are pulled from our database in real time. Press Add button to see product price.
| Vise Size | Capacity | Part Number |
| 4 INCH | .09” - 1-1/8” | 4RHJ-150 |
| 1/2” - 2-1/8” | 4OHV-150 | |
| 6 INCH | 1/8” - 2” | 6RHJ-150 |
| 1” - 3-1/8” | 6OHV-150 | |
| 8 INCH | 1" - 3" | 8RHJ-150 |
| 1-1/2” - 4-1/8” | 8OHV-150 |
