SIC Series Chuck
- Gripping of square or octagonal workpieces could fit into central line automatically.
- SIC have high stability in gripping thin tube work piece.
- The specification is the same as SC type.
- The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.

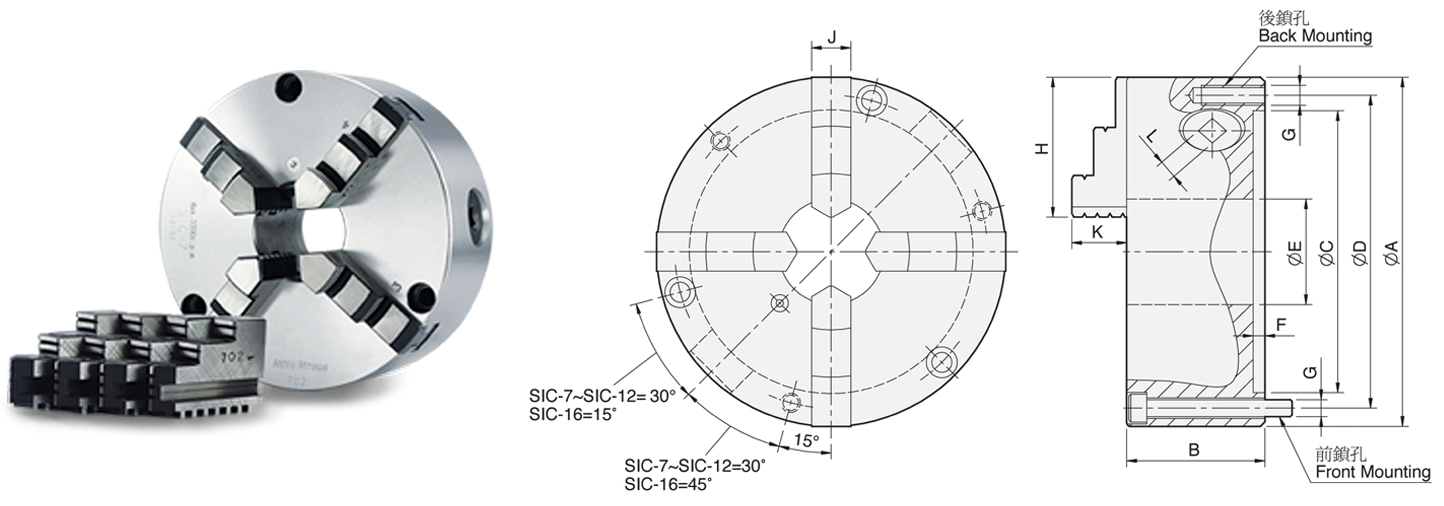

| A | B | C | D | E | F | G Back / Front |
H | J | K | L | Allowable Handle Torque (kgf．m) |
Gripping Force (kgf) |
Max. Speed (r.p.m.) |
Weight (kg) |
Moment Of Inertia I (kg ．m²) |
Gripping Range O.D. Range / I.D. Range |
Part Number | Price Each |
| 192 | 76.5 | 155 | 172 | 58 | 5.5 | 3-M10 / 3-M10x80 | 77 | 21.5 | 29.4 | 11 | 11.0 | 2500 | 2000 | 14.8 | 0.06 | Ø4-Ø180 / Ø56-Ø170 | SIC-7 | Call or Email |
| 232 | 84 | 190 | 210 | 70 | 6 | 3-M12 / 3-M12x90 | 87 | 24 | 35.6 | 12 | 15.0 | 3000 | 2000 | 23.2 | 0.16 | Ø5-Ø220 / Ø62-Ø210 | SIC-9 | Call or Email |
| 310 | 96 | 260 | 285 | 105 | 7 | 3-M12 / 3-M12x110 | 110 | 30 | 45.6 | 14 | 21.0 | 4200 | 1800 | 47 | 0.58 | Ø10-Ø300 / Ø86-Ø290 | SIC-12 | Call or Email |
| 405 | 122 | 345 | 375 | 160 | 8.7 | — / 6-M14x130 | 146 | 42 | 56.3 | 15 | 25.0 | 4500 | 1500 | 107 | 1.72 | Ø30-Ø380 / Ø110-Ø360 | SIC-16 | Call or Email |
