NHT-200 Power Chuck
(adapter included)
- Gripping of round or irregular workpiece does not need to change the chuck.
- The chucks are designed according to ASA B5.9 type A spindle.
- The chucks are made from high grade alloy steel. All sliding surfaces are hardened and ground to increase running accuracy and longer service life.
| Through-Hole (mm) |
Plunger Stroke (mm) |
Jaw stroke (In Dia.) (mm) |
Max. Pull Force (kgf) |
Max. Gripping Force (kgf) |
Max. Operating Pressure (kgf / cm²) |
Max. Speed (r.p.m.) |
Weight (kg) |
Matching Cylinder |
Matching Hard Jaw |
Matching Soft Jaw |
SPEC Part Number | Price Each | |||
| 3 Jaw | 2 Jaw | 3 Jaw | 2 Jaw | 3 Jaw | 2 Jaw | ||||||||||
| Ø52 | 16 | 7.4 | 2243 | 1495 | 5812 | 3875 | 17.2 | 12.1 | 3500 | 25.5 | M1552 | HJ06 | HC08-1 | NHT-208A5 | Call or Email |
| Ø52 | 16 | 7.4 | 2243 | 1495 | 5812 | 3875 | 17.2 | 12.1 | 3500 | 24.7 | M1552 | HJ06 | HC08-1 | NHT-208A6 | Call or Email |

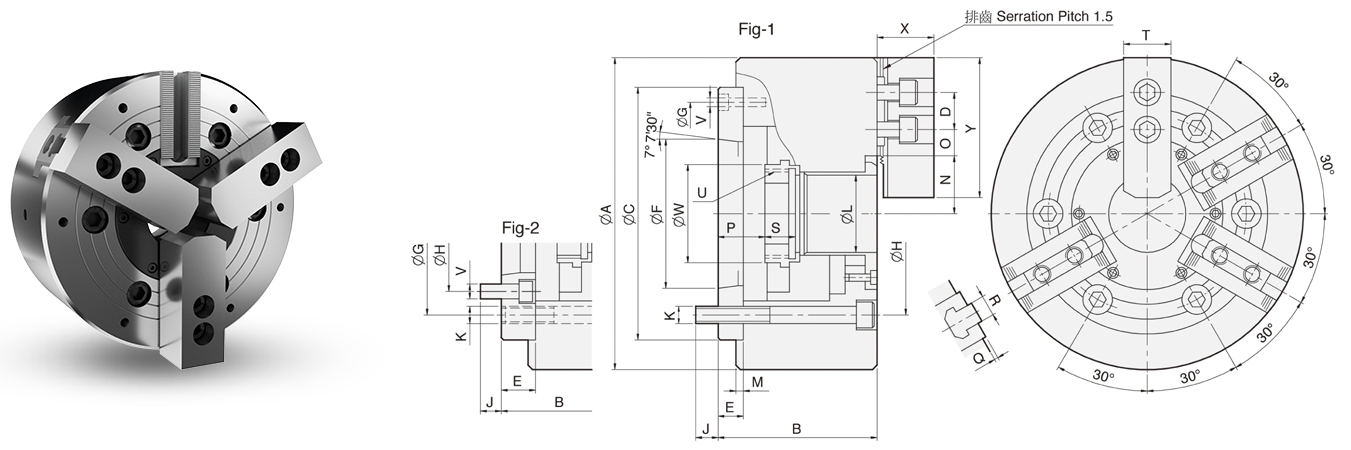

| A | B | C (H6) |
D | E | F | G | H | J | K | L | M | N max. |
O max. |
O min. |
P max. |
P min. |
Q | R | S | T | U max. |
V | W | X | Y | Reference | DIM Part Number | Price Each |
| 210 | 113 | 170 | 20 | 23 | 82.563 | 133.35 | 104.78 | 13 | 6xM12 | 52 | 5 | 41.8 | 34 | 7.5 | 37.5 | 21.5 | 2 | 12 | 20.5 | 35 | M60x2 | 6xM10 | 66 | 37 | 73 | Fig-2 | NHT-208A5 | Call or Email |
| 210 | 107 | 170 | 20 | 17 | 106.375 | 150 | 133.35 | 17 | 6xM12 | 52 | 5 | 41.8 | 34 | 7.5 | 31.5 | 15.5 | 2 | 12 | 20.5 | 35 | M60x2 | 3xM6 | 66 | 37 | 73 | Fig-1 | NHT-208A6 | Call or Email |
