N-200A Power Chuck

3-jaw through-hole power chuck
(adapter included)

More large bore : The largest bore in wedge type power operated chucks.
Model N-200A chucks are assembled with adaptor for ASA B5.9 type A spindles.

Through-Hole (mm)	Plunger Stroke (mm)	Jaw stroke (In Dia.) (mm)	Max. Pull Force (kgf)	Max. Gripping Force (kgf)	Max. Operating Pressure (kgf / cm²)	Max. Speed (r.p.m.)	Weight (kg)	Moment Of Inertia I (kg．m²)	Matching Cylinder	Matching Hard Jaw	Matching Soft Jaw	Gripping O.D. Range (mm)	SPEC Part Number	Price Each
Ø33	10	5.4	1784	3671	28.5	7000	7.8	0.020	M1036	HJ05	HC05	Ø6-Ø135	N-205A4	Call or Email
Ø33	10	5.4	1784	3671	28.5	7000	9	0.023	M1036	HJ05	HC05	Ø6-Ø135	N-205A5	Call or Email
Ø45	12	5.5	2243	5812	28.5	6000	15.5	0.065	M1246	HJ06	HC06	Ø15-Ø169	N-206A4	Call or Email
Ø45	12	5.5	2243	5812	28.5	6000	14.7	0.062	M1246	HJ06	HC06	Ø15-Ø169	N-206A5	Call or Email
Ø45	12	5.5	2243	5812	28.5	6000	17.3	0.073	M1246	HJ06	HC06	Ø15-Ø169	N-206A6	Call or Email
Ø52	16	7.4	3558	9075	26.5	5000	25.8	0.190	M1552	HJ08	HC08	Ø20-Ø210	N-208A5	Call or Email
Ø52	16	7.4	3558	9075	26.5	5000	25	0.184	M1552	HJ08	HC08	Ø20-Ø210	N-208A6	Call or Email
Ø52	16	7.4	3558	9075	26.5	5000	29.3	0.217	M1552	HJ08	HC08	Ø20-Ø210	N-208A8	Call or Email
Ø75	19	8.8	4385	11319	27.5	4200	41	0.370	M1875	HJ10	HC10	Ø25-Ø254	N-210A6	Call or Email
Ø75	19	8.8	4385	11319	27.5	4200	38	0.340	M1875	HJ10	HC10	Ø25-Ø254	N-210A8	Call or Email
Ø75	19	8.8	4385	11319	27.5	4200	48.4	0.436	M1875	HJ10	HC10	Ø25-Ø254	N-210A11	Call or Email
Ø91	23	10.6	5812	14990	27.5	3300	62.5	0.809	M2091	HJ12	HC12	Ø30-Ø304	N-212A6	Call or Email
Ø91	23	10.6	5812	14990	27.5	3300	59.5	0.770	M2091	HJ12	HC12	Ø30-Ø304	N-212A8	Call or Email
Ø91	23	10.6	5812	14990	27.5	3300	69.9	0.912	M2091	HJ12	HC12	Ø30-Ø304	N-212A11	Call or Email
Ø117.5	23	10.6	7240	18355	23.5	2500	125	2.255	M2511	HJ15	HC15	Ø50-Ø381	N-215A8	Call or Email
Ø117.5	23	10.6	7240	18355	23.5	2500	118	2.241	M2511	HJ15	HC15	Ø50-Ø381	N-215A11	Call or Email
Ø117.5	23	10.6	7240	18355	23.5	2500	138	2.822	M2511	HJ15	HC15	Ø50-Ø381	N-215A15	Call or Email
Ø117.5	23	10.6	7240	18355	23.5	2000	146	3.961	M2511	HJ15	HC15	Ø50-Ø450	N-218A8	Call or Email
Ø117.5	23	10.6	7240	18355	23.5	2000	138	3.744	M2511	HJ15	HC15	Ø50-Ø450	N-218A11	Call or Email
Ø117.5	23	10.6	7240	18355	23.5	2000	191	5.183	M2511	HJ15	HC15	Ø50-Ø450	N-218A15	Call or Email
Ø180	23	10.6	9177	23861	30.6	1800	215	7.355	ML2816	HJ24-1	HC24-1	Ø120-Ø510	N-220A11	Call or Email
Ø180	23	10.6	9177	23861	30.6	1800	202	6.910	ML2816	HJ24-1	HC24-1	Ø120-Ø510	N-220A15	Call or Email
Ø205	26	12	9177	23861	26.5	1400	332	18.199	ML3320	HJ24-1	HC24-1	Ø150-Ø610	N-224A11	Call or Email
Ø205	26	12	9177	23861	26.5	1400	317	17.376	ML3320	HJ24-1	HC24-1	Ø150-Ø610	N-224A15	Call or Email
Ø205	26	12	9177	23861	26.5	1400	286	15.677	ML3320	HJ24-1	HC24-1	Ø150-Ø610	N-224A20	Call or Email
Ø230	34	18	10197	24472	29.5	1200	530	43	ML3320	HJ24-1	HC24-1	Ø210-Ø800	N-232A11	Call or Email
Ø230	34	18	10197	24472	29.5	1200	515	43	ML3320	HJ24-1	HC24-1	Ø210-Ø800	N-232A15	Call or Email
Ø230	34	18	10197	24472	29.5	1200	485	42	ML3320	HJ24-1	HC24-1	Ø210-Ø800	N-232A20	Call or Email

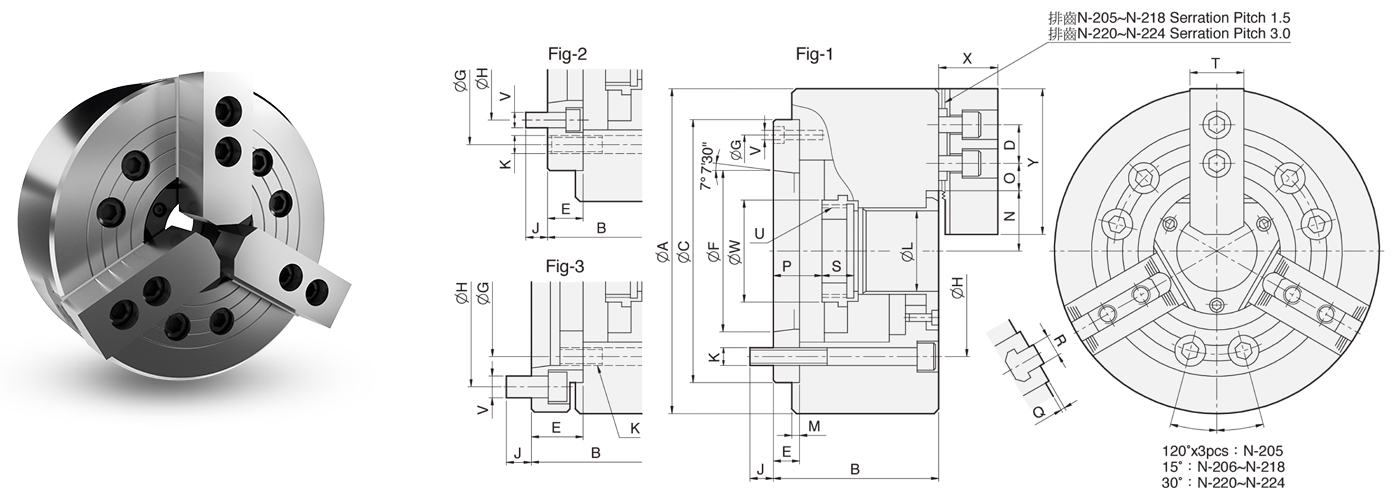

A	B	C (H6)	D	E	F	G	H	J	K	L	M	N max.	O max.	O min.	P max.	P min.	Q	R	S	T	U max.	V	W	X	Y	Reference	DIM Part Number	Price Each
135	71	110	14	15	63.513	96	82.55	15.5	3-M10	33	4	26.5	19.75	7.75	16	6	2	10	20	25	M40x1.5	3-M6	45	31	54	Fig-1	N-205A4	Call or Email
135	88	110	14	32	82.563	82.55	104.78	14	3-M10	33	4	26.5	19.75	7.75	33	23	2	10	20	25	M40x1.5	6-M10	45	31	54	Fig-3	N-205A5	Call or Email
169	96	140	20	20	63.513	104.78	82.55	16	6-M10	45	5	32	22.75	9.25	31	19	2	12	19	31	M55x2	6-M10	60	37	73	Fig-2	N-206A4	Call or Email
169	91	140	20	15	82.563	116	104.78	16	6-M10	45	5	32	22.75	9.25	26	14	2	12	19	31	M55x2	3-M6	60	37	73	Fig-1	N-206A5	Call or Email
169	111	140	20	35	106.375	104.78	133.35	16	6-M10	45	5	32	22.75	9.25	46	34	2	12	19	31	M55x2	6-M12	60	37	73	Fig-3	N-206A6	Call or Email
210	109	170	25	23	82.563	133.35	104.78	14	6-M12	52	5	38.7	29.75	11.75	37.5	21.5	2	14	20.5	35	M60x2	6-M10	66	38	95	Fig-2	N-208A5	Call or Email
210	103	170	25	17	106.375	150	133.35	18	6-M12	52	5	38.7	29.75	11.75	31.5	15.5	2	14	20.5	35	M60x2	3-M6	66	38	95	Fig-1	N-208A6	Call or Email
210	126	170	25	40	139.719	133.35	171.45	24	6-M12	52	5	38.7	29.75	11.75	54.5	38.5	2	14	20.5	35	M60x2	6-M16	66	38	95	Fig-3	N-208A8	Call or Email
254	120	220	30	25	106.375	171.45	133.35	18	6-M16	75	5	51	33.75	14.25	33.5	14.5	2	16	25	40	M85x2	6-M12	94	43	110	Fig-2	N-210A6	Call or Email
254	113	220	30	18	139.719	190	171.45	24	6-M16	75	5	51	33.75	14.25	26.5	7.5	2	16	25	40	M85x2	3-M8	94	43	110	Fig-1	N-210A8	Call or Email
254	145	220	30	50	196.869	171.45	235	28	6-M16	75	5	51	33.75	14.25	58.5	39.5	2	16	25	40	M85x2	6-M20	94	43	110	Fig-3	N-210A11	Call or Email
304	129	220	30	25	106.375	171.45	133.35	18	6-M16	91	6	61.3	45.75	15.75	33	10	2	21	28	50	M100x2	6-M12	108	51	130	Fig-2	N-212A6	Call or Email
304	122	220	30	18	139.719	190	171.45	25	6-M16	91	6	61.3	45.75	15.75	26	3	2	21	28	50	M100x2	3-M8	108	51	130	Fig-1	N-212A8	Call or Email
304	154	220	30	50	196.869	171.45	235	28	6-M16	91	6	61.3	45.75	15.75	58	35	2	21	28	50	M100x2	6-M20	108	51	130	Fig-3	N-212A11	Call or Email
381	160	300	43	33	139.719	235	171.45	24	6-M20	117.5	6	82	45.25	15.25	40	17	5	22	43	62	M130x2	6-M16	139	66	165	Fig-2	N-215A8	Call or Email
381	149	300	43	22	196.869	260	235	28	6-M20	117.5	6	82	45.25	15.25	29	6	5	22	43	62	M130x2	3-M20	139	66	165	Fig-1	N-215A11	Call or Email
381	184	300	43	57	285.775	235	330.2	29	6-M20	117.5	6	82	45.25	15.25	64	41	5	22	43	62	M130x2	6-M24	139	66	165	Fig-3	N-215A15	Call or Email
450	160	300	43	33	139.719	235	171.45	24	6-M20	117.5	6	82	79.75	15.25	40	6	5	22	43	62	M130x2	6-M16	139	66	165	Fig-2	N-218A8	Call or Email
450	149	300	43	22	196.869	260	235	28	6-M20	117.5	6	82	79.75	15.25	29	6	5	22	43	62	M130x2	3-M10	139	66	165	Fig-1	N-218A11	Call or Email
450	184	300	43	57	285.775	235	330.2	29	6-M20	117.5	6	82	79.75	15.25	64	41	5	22	43	62	M130x2	6-M24	139	66	165	Fig-3	N-218A15	Call or Email
510	169	380	60	41	196.869	330.2	235	30	6-M24	180	6	112.5	60.5	24.5	52	29	5	25	38	64	M190x3	6-M20	206	73	180	Fig-2	N-220A11	Call or Email
510	155	380	60	27	285.775	330.2	330.2	33	6-M24	180	6	112.5	60.5	24.5	38	15	5	25	38	64	M190x3	3-M12	206	73	180	Fig-1	N-220A15	Call or Email
610	186	520	60	45	196.869	463.6	235	28	6-M24	205	6	139.9	87.5	24.5	61	35	5	25	38	64	M215x3	6-M20	230	73	180	Fig-2	N-224A11	Call or Email
610	183	520	60	42	285.775	463.6	330.2	32.5	6-M24	205	6	139.9	87.5	24.5	58	32	5	25	38	64	M215x3	6-M24	230	73	180	Fig-2	N-224A15	Call or Email
610	166	520	60	25	412.775	463.6	463.6	35	6-M24	205	6	139.9	87.5	24.5	41	15	5	25	38	64	M215x3	3-M10	230	73	180	Fig-1	N-224A20	Call or Email
800	189	520	60	45	196.869	463.6	235	28	6-M24	230	6	162	153.5	24.5	61	27	5	25	38	64	M250x3	6-M20	262	73	180	Fig-2	N-232A11	Call or Email
800	186	520	60	42	285.775	463.6	330.2	32.5	6-M24	230	6	162	153.5	24.5	58	24	5	25	38	64	M250x3	6-M24	262	73	180	Fig-2	N-232A15	Call or Email
800	169	520	60	25	412.775	463.6	463.6	35	6-M24	230	6	162	153.5	24.5	41	7	5	25	38	64	M250x3	3-M10	262	73	180	Fig-1	N-232A20	Call or Email
