MS Hydraulic Cylinder
- Built-in safty check valves.
| Piston Area (cm²) |
Max. Draw Bar Force kN(kgf) |
Piston Stroke (mm) |
Max. Operating Pressure MPa(kgf / cm² |
Max. Speed (r.p.m.) |
Moment Of Inertia I (kg．m²) |
Weight (kg) |
Total Leakage L/min |
SPEC Part Number | Price Each | |
| Push Side | Pull Side | Pull Side | ||||||||
| 86 | 79 | 29(2957) | 20 | 4.0(40.8) | 6000 | 0.0125 | 7.1 | 0.8 | MS105 | Call or Email |
| 122 | 113 | 42(4283) | 25 | 4.0(40.8) | 6000 | 0.0225 | 10 | 0.8 | MS125 | Call or Email |
| 176 | 160 | 60(6118) | 30 | 4.0(40.8) | 5500 | 0.0475 | 13.5 | 0.8 | MS150 | Call or Email |
| 314 | 290 | 108(11013) | 35 | 4.0(40.8) | 5500 | 0.0975 | 22 | 0.8 | MS200 | Call or Email |

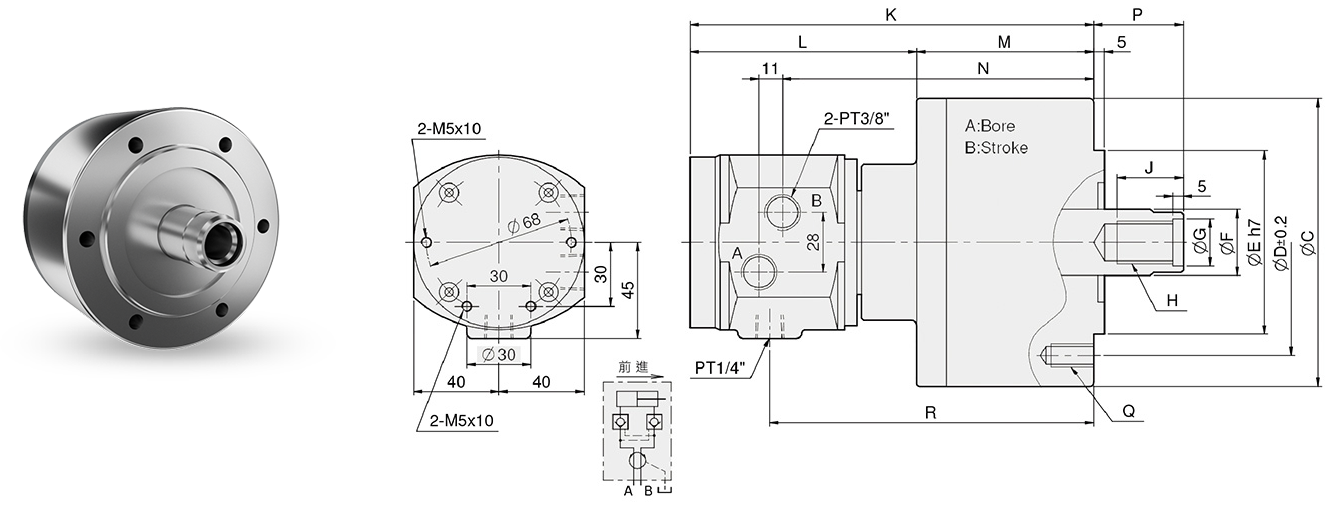

| A | B | C | D | E | F | G | H | J | K | L | M | N | P max. |
P min. |
Q | R | DIM Part Number | Price Each |
| 105 | 20 | 135 | 100 | 80 | 30 | 21 | M20x2.5 | 35 | 197 | 108 | 89 | 152 | 45 | 25 | 6-M10x20 | 158 | MS105 | Call or Email |
| 125 | 25 | 160 | 130 | 110 | 35 | 25 | M24x3.0 | 44 | 205 | 108 | 97 | 160 | 51 | 26 | 6-M12x24 | 166 | MS125 | Call or Email |
| 150 | 30 | 190 | 130 | 110 | 45 | 31 | M30x3.5 | 45 | 214 | 108 | 106 | 169 | 56 | 26 | 12-M12x24 | 175 | MS150 | Call or Email |
| 200 | 35 | 245 | 145 | 120 | 55 | 37 | M36x4.0 | 60 | 228 | 108 | 122 | 183 | 69 | 34 | 12-M16x30 | 189 | MS200 | Call or Email |
