MS-C Hydraulic Cylinder

Non through-hole rotary hydraulic cylinder
(valve and switch brackets included)

• Built-in safty check valves and detective plate.
• The proximity switches are extra option.

Piston Area (cm²)		Max. Draw Bar Force kN(kgf)	Piston Stroke (mm)	Max. Operating Pressure MPa(kgf / cm²	Max. Speed (r.p.m.)	Moment Of Inertia I (kg．m²)	Weight (kg)	Total Leakage L/min	SPEC Part Number	Price Each
Push Side	Pull Side	Pull Side
84	79	29 (2957)	20	4.0(40.8)	6000	0.0125	7.6	0.8	MS105C Add	Call or Email
120	113	42 (4283)	25	4.0(40.8)	6000	0.022	10.5	0.8	MS125C Add	Call or Email
120	113	42 (4283)	35	4.0(40.8)	6000	0.022	10.5	0.8	MS125C35 Add	Call or Email
174	160	60 (6118)	30	4.0(40.8)	5500	0.047	14	0.8	MS150C Add	Call or Email
312	290	108 (11013)	35	4.0(40.8)	5500	0.097	22.5	0.8	MS200C Add	Call or Email

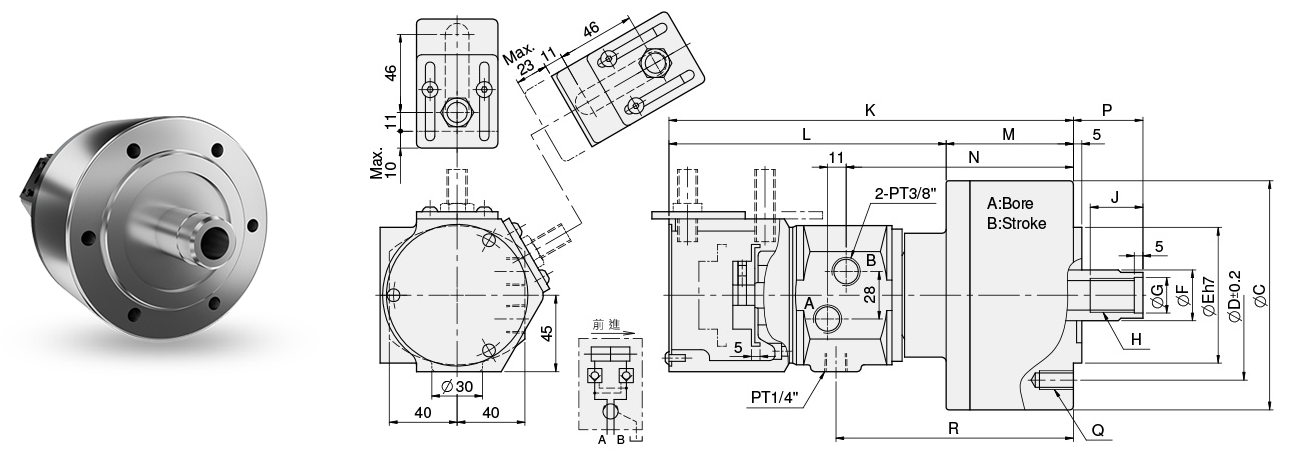

A	B	C	D	E	F	G	H	J	K	L	M	N	P max.	P min.	Q	R	S	T	DIM Part Number	Price Each
105	20	135	100	80	30	21	M20x2.5	35	257	168	89	152	45	25	6-M10x20	158	23	46	MS105C	Call or Email
125	25	160	130	110	35	25	M24x3.0	44	265	168	97	160	51	26	6-M12x24	166	23	46	MS125C	Call or Email
125	35	160	130	110	35	25	M24x3.0	44	269	168	101	164	57	22	6-M12x24	170	23	46	MS125C35	Call or Email
150	30	190	130	110	45	31	M30x3.5	45	274	168	106	169	56	26	12-M12x24	175	23	46	MS150C	Call or Email
200	35	245	145	120	55	37	M36x4.0	60	288	166	122	183	69	34	12-M16x30	189	28	46	MS200C	Call or Email

Draw bar pull force : Pressure 4.0 MPa(40.8kgf / cm²)
Total leakage : Pressure 3.0 MPa(30.6kgf / cm²) and oil temperature 50°C
Proximity switch : Model BESS 16-329-E4-Y (BALLUFF) DC 12 / 24V 200mA NPN
