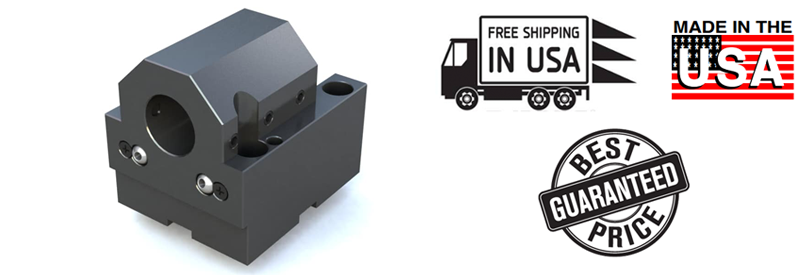

Mori Seiki Tool Blocks

Mori Seiki Tool Blocks
Tool Block Features

Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
Components Included: Wedges, Coolant Nozzles and Set Screws.
Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
Made in the USA.

New Items

VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!

Bolt Hole Pattern: 64mm x 30mm Machine Model	I.D.	Center Height	Part Number Int. Coolant: Add -INT	OD Turning Type I	OD Facing Type II	Price
CL15, CL20, SL135, SL150, SL154, ZL15	1.250"	35mm	MSL150-8432	MSL150-8311A .75" Sq.	MSL150-8411A .75" Sq.	CALL
	1.5"	35mm	MSL150-8435			CALL
	2"	35mm	MSL150-8436			CALL
	0.750"	30mm,70mm Double	MSL150-8420DBL			CALL

Bolt Hole Pattern: 76mm x 35mm Machine Model	I.D.	Center Height	Part Number Int. Coolant: Add -INT	OD Turning Type I	OD Facing Type II	Price
CL25, CL200, CL253, CL2000, DT1500, DT1530, DT2550, SL200, SL203, SL204, SL250, SL253, SL300, SL303,, VL25A1, ZL25, ZL200, ZL250, ZT2500, Duraturn 2050,, SL20, SL25, SL30, SL2500, NLX2500, Frontier	1"	40mm	MSL20-8425	MSL20-8311 1" Sq.	MSL20-8411 1" Sq.	CALL
	1.25"	40mm	MSL20-8432	MSL20-8311 DBL 1" Sq.		CALL
	1.5"	40mm	MSL20-8435			CALL
	1.75"	40mm	MSL20-8445			CALL
	2"	40mm	MSL20-8436			CALL

Bolt Hole Pattern: 88mm x 63mm Machine Model	I.D.	Center Height	Part Number Int. Coolant: Add -INT	OD Turning Type I	OD Facing Type II	Price
SL35, TL40-10ST, ZL35, Samsung	1.5"	40mm	MSL35-8435	MSL35-8311 1" Sq.	MSL35-8411 1" Sq.	CALL
	2"	40mm	MSL35-8436			CALL
	2.5"	50mm	MSL35-8437			CALL

Bolt Hole Pattern: 102mm x 80mm Machine Model	I.D.	Center Height	Part Number Int. Coolant: Add -INT	OD Turning Type I	OD Facing Type II	Price
SL45, SL400, SL403, SL405, VL55, ZL45	2"	50mm	MSL403-8436	MSL403-8311B 1.25" Sq.	MSL403-8411B 1.25" Sq.	CALL
	2.5"	50mm	MSL403-8437			CALL
	3"	50mm	MSL403-8475			CALL

Bolt Hole Pattern: 115mm x 110mm Machine Model	I.D.	Center Height	Part Number Int. Coolant: Add -INT	OD Turning Type I	OD Facing Type II	Price
SL6, SL65, SL600, SL603, MSL75	2.5"	60mm	MSL65-8437	MSL65-8311B 1.25" Sq.	MSL65-8411B 1.25" Sq.	CALL
	3"	60mm	MSL65-8475	MSL65-8311 1" Sq.		CALL
	4"		MSL65-84100			CALL

Bolt Hole Pattern: 124mm x 95mm Machine Model	I.D.	Center Height	Part Number Int. Coolant: Add -INT	OD Turning Type I	OD Facing Type II	Price
SL630MC	2.5"	2.5"	MSL603MC-8437 Split			CALL

Bolt Hole Pattern: 70mm x 62mm Machine Model	I.D.	Center Height	Part Number Int. Coolant: Add -INT	OD Turning Type I	OD Facing Type II	Price
NT3100 DCG, NT3150 DCG, NT3200 DCG, NZ1500, NZ2000, NZ3000, DURA 2050MC	1"	75mm, 105mm Double	† NZ2000-8425DBL	NZ2000-8311A .75" Sq.	NZ2000-8411 1" Sq.	CALL
	1.25"	100mm	† NZ2000-8432	NZ2000-8311 1" Sq.		CALL
	1.5"	100mm	† NZ2000-8435			CALL

Bolt Hole Pattern: 94mm x 84mm Machine Model	I.D.	Center Height	Part Number Int. Coolant: Add -INT	OD Turning Type I	OD Facing Type II	Price
NL1500, NL2000, NL2500, NL3000, NT4200, NT4250, NLX2500, Feeler, NT4300	1.25"	80mm, 120mm Double	NL3000-8432DBL	NL3000-8311 1" Sq.	NL3000-8411 1" Sq.	CALL
	1.5"	80mm	NL3000-8435	NL3000-8311 DBL 1" Sq.		CALL
	2"	80mm	NL3000-8436			CALL
	2.5"	80mm	NL3000-8437			CALL
	3"	80mm	NL3000-8475			CALL
