ML-CM.B Hydraulic Cylinder
- Matching for large bore power chucks.
- Special aluminum alloy steel body, light weight for reducing the spindle loading.
- Within check valves to maintain the thrust force.
- Extra large bore design, equipped with coolant collector and detective plate.
- The proximity switches and mounting bolts are extra option.
| Piston Dia. (mm) |
Piston Area (cm²) |
Max. Draw Bar Force kN(kgf) |
Piston Stroke (mm) |
Max. Operating Pressure MPa(kgf / cm² |
Max. Speed (r.p.m.) |
Moment Of Inertia I (kg．m²) |
Weight (kg) |
Total Leakage L/min |
SPEC Part Number | Price Each | ||
| Push Side | Pull Side | Push Side | Pull Side | |||||||||
| 285 | 394 | 350 | 116.8(11910) | 106.8(10584) | 42 | 3.3(33.6) | 2000 | 1.08 | 87 | 9 | ML2814CM28B | Call or Email |
| 285 | 394 | 350 | 116.8(11910) | 106.8(10584) | 42 | 3.3(33.6) | 2000 | 0.90 | 72 | 9 | ML2816CM28B | Call or Email |
| 335 | 515.7 | 416.9 | 152.9(15591) | 136.9(13960) | 42 | 3.3(33.6) | 1600 | 1.09 | 103 | 10 | ML3320CM33B | Call or Email |

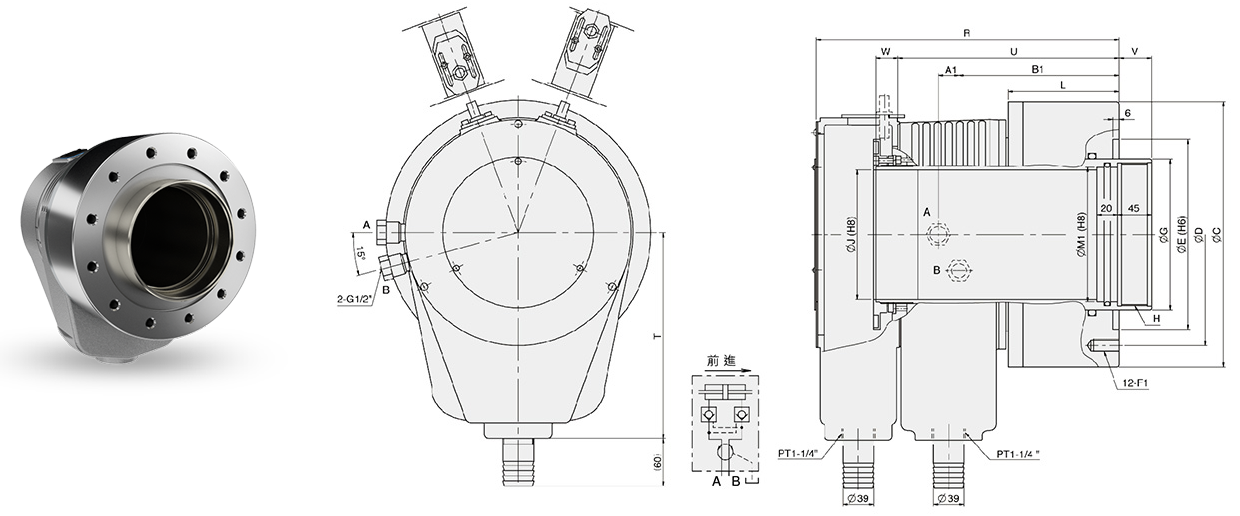

| C | D | E (H6) |
G | H | J | L | R | T | U | V max. |
V min. |
W max. |
W min. |
A1 | B1 | F1 | M1 | DIM Part Number | Price Each |
| 335 | 280 | 240 | 190 | M158x3.0 | 145 | 140 | 382 | 260 | 279 | 41 | -1 | 67 | 25 | 18 | 202 | M16x32L | 150 | ML2814CM28B | Call or Email |
| 335 | 280 | 240 | 190 | M180x3.0 | 166.5 | 140 | 382 | 260 | 279 | 41 | -1 | 67 | 25 | 18 | 202 | M16x32L | 170 | ML2816CM28B | Call or Email |
| 390 | 320 | 280 | 230 | M215x3.0 | 205 | 147 | 392 | 260 | 292 | 41 | -1 | 67 | 25 | 18 | 210 | M20x32L | 210 | ML3320CM33B | Call or Email |
