MK Hydraulic Cylinder

Super high speed through-hole compact rotary hydraulic cylinder
  • The compact hydraulic cylinder which is shorten the length about 30% and light weight can reduce the spindle loading while running in high speed.
  • Built-in check valve in safety auto lock and pressure relief valve in case of power failure occurs.
  • New model developed for rear locking installation.
Piston
Dia.
(mm)		 Piston Area
(cm²)		 Max. Draw Bar Force
kN(kgf)		 Piston
Stroke
(mm)		 Max.
Operating
Pressure
MPa(kgf / cm²		 Max.
Speed
(r.p.m.)		 Moment Of
Inertia
I
(kg．m²)		 Weight
(kg)		 Total
Leakage
L/min		 SPEC Part Number Price Each
Push Side Pull Side Push Side Pull Side
128 102.6 91.4 43.6(4466) 38.9(3967) 16 4.5(45.9) 8000 0.017 8.6 3.1 MK1246
Call or Email
128 102.6 91.4 43.6(4466) 38.9(3967) 16 4.5(45.9) 8000 0.018 9.2 3.1 MK1246F
Call or Email
145 133 122.6 56.5(5761) 52.1(5313) 22 4.5(45.9) 6500 0.028 12 3.9 MK1452
Call or Email
145 133 122.6 56.5(5761) 52.1(5313) 22 4.5(45.9) 6500 0.029 12.5 3.9 MK1452F
Call or Email
170 166 152 70.7(7209) 64.7(6597) 25 4.5(45.9) 5500 0.065 19.4 4.5 MK1768
Call or Email
170 166 152 70.7(7209) 64.7(6597) 25 4.5(45.9) 5500 0.060 17.8 4.5 MK1775
Call or Email
170 166 152 70.7(7209) 64.7(6597) 25 4.5(45.9) 5500 0.059 17.4 4.5 MK1778
Call or Email
180 187 171.9 79.5(8107) 73.1(7454) 25 4.5(45.9) 4800 0.087 24 4.5 MK1881
Call or Email

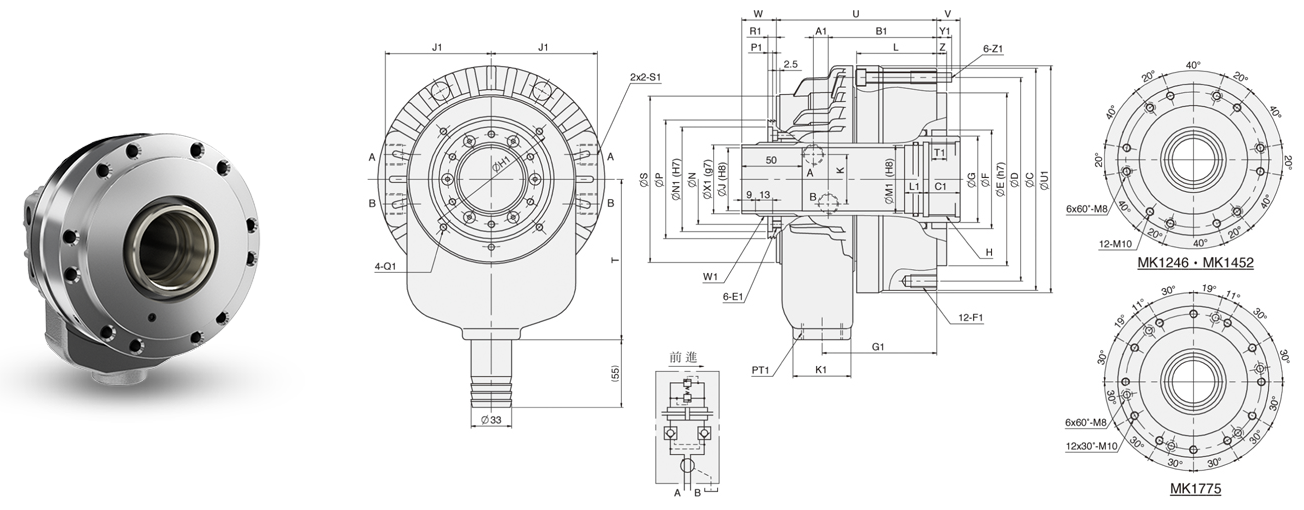

A1 B1 C1 E1 F1 G1 H1 J1 K1 L1 M1 N1 P1 Q1 R1 S1 T1 U1 W1 X1 Y1 Z1 DIM Part Number Price Each
8.5 79.5 25 M6x10 12-M10x20 84 98 76 47 15 50 76 4 M5x6 9 PT 3/8 12 165 M52x1.5 50 15 M8 MK1246 Call or Email
8.5 89.5 30 M6x10 6-M10x20 94 98 76 47 15 50 76 4 M5x6 9 PT 3/8 8 165 M52x1.5 50 15 M8 MK1246F Call or Email
9 88 30 M6x12 12-M10x20 93 110 86 47 15 55 85 4 M6x6 16 PT 3/8 12 184 M58x1.5 56 12 M8 MK1452 Call or Email
9 95 30 M6x12 6-M10x20 100 110 86 47 15 55 85 4 M6x6 16 PT 3/8 8 184 M58x1.5 56 15 M8 MK1452F Call or Email
17.5 99 30 M6x12 12-M10x20 110 155 100 47 15 70 108 4 M6x10 7 PT 1/2 12 216 M84x2.0 81 18 M10 MK1768 Call or Email
17.5 99 30 M6x12 12-M10x20 110 155 100 47 15 80 108 4 M6x10 7 PT 1/2 12 216 M84x2.0 81 18 M10 MK1775 Call or Email
17.5 99 30 M6x12 12-M10x20 110 155 100 47 15 82 108 4 M6x10 7 PT 1/2 12 216 M84x2.0 81 18 M10 MK1778 Call or Email
17 106 35 M6x12 12-M10x20 115 166 105 47 15 85 113 4 M6x10 16.5 PT 1/2 12 226 M89x2.0 86 19 M10 MK1881 Call or Email
C D D1 E F G H J K L N P S T U V
max.		 V
min.		 W
max.		 W
min.		 Z DIM Part Number Price Each
162 147 147 130 75 65 M55x2.0 46 40 58 64 85 116 120 120 13 -3 44 28 8 MK1246 Call or Email
162 130 147 100 75 65 M55x2.0 46 40 68 64 85 116 120 130 14 -2 44 28 5 MK1246F Call or Email
184 165 165 140 80 70 M60x2.0 52 40 66 73 96 135 130 130 19 -3 53.5 31.5 8 MK1452 Call or Email
186 170 165 130 80 70 M60x2.0 52 40 73 73 96 135 130 137 21 -1 53.5 31.5 5 MK1452F Call or Email
212 195 195 160 105 95 M75x2.0 68 46 71 98 121 164 160 157 22 -3 50 25 8 MK1768 Call or Email
212 195 195 160 105 95 M85x2.0 75 46 71 98 121 164 160 157 22 -3 50 25 8 MK1775 Call or Email
212 195 195 160 105 95 M87x2.0 78 46 71 98 121 164 160 157 22 -3 50 25 8 MK1778 Call or Email
222 205 205 168 110 100 M90x2.0 81 46 71 103 126 175 175 167 23 -2 58 33 8 MK1881 Call or Email
