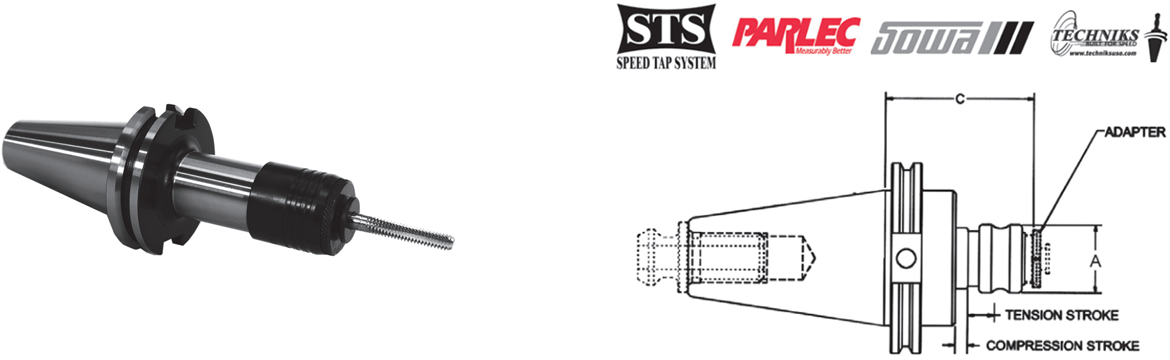

CAT 50 Taper Quick Change V-Flange Tap Holders
Tension / Compression and Synchronous Tapping
For use with Industry Standard Quick-Change Tap Collets Prices are pulled from our database in real time. Press Add button to see product price.
| CAT 50 TAPER | |||||||||
| Adapter Size | Capacity | C Proj | Comp | Tension | A Dia | Brand | Part Number | Code | |
| TENSION/COMPRESSION | |||||||||
| 1 | #0 - 9/16" Hand, 1/16" & 1/8" NPT |
3.15 | 0.250 | 0.560 | 1.390 | Parlec | C50-10TA315-P | B | |
| 3.52 | 0.300 | 0.300 | 1.417 | STS | C50-10TA352-U | D | |||
| #0 - 9/16" Hand, 1/8" NPT |
4.00 | 0.290 | 0.290 | 1.430 | Sowa | C50-10TA400-G | C | ||
| 5.02 | 0.390 | 0.790 | 1.250 | Sowa | C50-10TA502-G | C | |||
| 2 | 5/16" - 7/8" Hand, 1/4",3/8" & 1/2" NPT |
3.93 | 0.492 | 0.492 | 2.080 | STS | C50-20TA393-U | D | |
| 5/16" - 7/8" Hand, 1/4" - 1/2" NPT |
4.25 | 0.250 | 0.560 | 2.180 | Parlec | C50-20TA425-P | B | ||
| 5.66 | 0.490 | 0.850 | 2.000 | Sowa | C50-20TA566-G | C | |||
| 3 | 13/16" - 1 3/8" Hand, 3/4" - 1" NPT |
5.65 | 0.250 | 0.560 | 3.260 | Parlec | C50-30TA565-P | B | |
| 5.78 | 0.787 | 0.787 | 3.070 | STS | C50-30TA578-U | D | |||
| 13/16" - 1 3/8" Hand, 1/2" - 1" NPT |
6.25 | 0.790 | 0.790 | 3.070 | Sowa | C50-30TA625-G | C | ||
| 7.72 | 0.590 | 0.980 | 2.870 | Sowa | C50-30TA772-G | C | |||
| RIGID TAPPING | |||||||||
| 1 | #0 - 9/16" Hand, 1/8" NPT |
3.020 | Rigid | Rigid | 1.250 | Sowa | C50-10FS302-G | C | |
| #0-9/16" Hand, 1/16" & 1/8" NPT |
3.440 | Rigid | Rigid | 1.250 | STS | C50-10FS344-U | D | ||
| 2 | 5/16"-7/8" Hand, 1/4", 3/8" & 1/2" NPT |
3.540 | Rigid | Rigid | 1.960 | STS | C50-20FS354-U | D | |
| 5/16" - 7/8" Hand, 1/4" - 1/2" NPT |
3.910 | Rigid | Rigid | 2.000 | Sowa | C50-20FS391-G | C | ||
| 3 | 13/16"-1 3/8" Hand, 1/2"-1" NPT |
4.980 | Rigid | Rigid | 2.870 | Sowa | C50-30FS498-G | C | |
| 13/16" - 1 3/8" Hand, 3/4" - 1" NPT |
4.720 | Rigid | Rigid | 2.830 | STS | C50-30FS472-U | D | ||
| 5.650 | Rigid | Rigid | 3.260 | Parlec | C50-30FS565-P | B | |||
